Portals Plus Deck-Mate Gray EPDM w/ Clamp

Deck-Mate is a molded gray EPDM roof flashing for metal roof and wall systems. Its stepped profile creates a compression seal around Schedule 40 piping, while reinforcing ribs help the boot maintain shape under clamp pressure. A dead soft aluminum flange bends to match roof contours and pitches for a tight fit. The assembly uses a stainless steel clamp to maintain a long-term, watertight seal without relying on caulk.

Key features:

• Stepped EPDM profile forms a compression seal around Schedule 40 piping.
• Reinforcing ribs maintain rigidity and shape under clamp loading.
• Dead soft aluminum flange conforms to roof contours, irregularities, and pitch.
• Stainless steel clamp provides durable, watertight sealing without caulk.

• SKU(s): DM#0, DM#1, DM#2, DM#3, DM#4, DM#5, DM#6, DM#7, DM#8, DM#9, DM#10

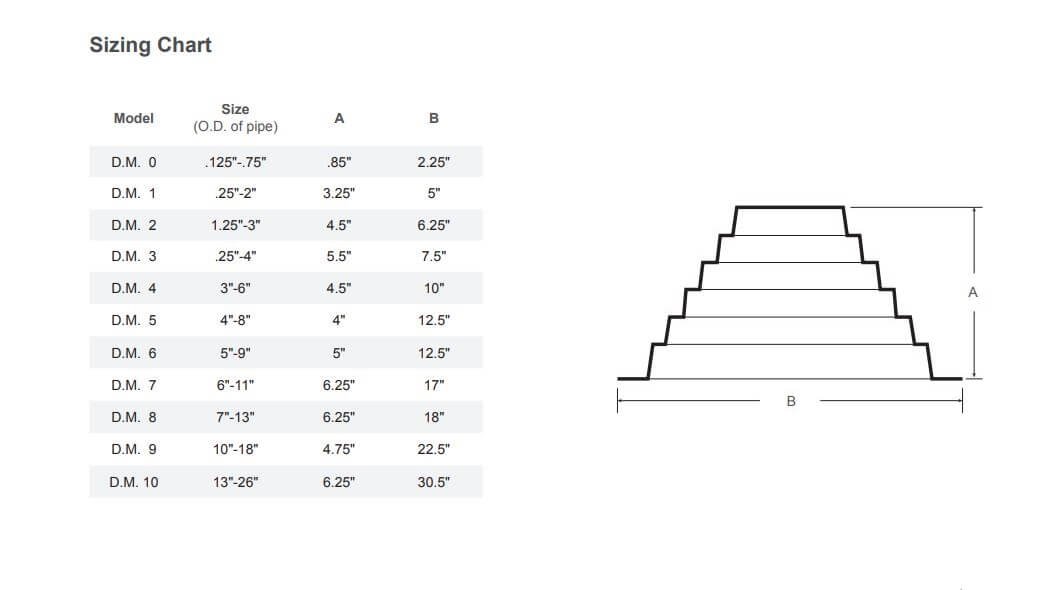

• Size options shown: DM#0 (1/8″–3/4″), DM#1 (1/4″–2″), DM#2 (1-1/4″–3″), DM#3 (1/4″–4″), DM#4 (3″–6″), DM#5 (4″–8″), DM#6 (5″–9″), DM#7 (6″–11″), DM#8 (7″–13″), DM#9 (10″–18″), DM#10 (13″–26″)
• Application: Flashings for metal roof and wall systems; works with corrugated metal roofs
• Construction: Gray EPDM boot with reinforcing ribs; dead soft aluminum flange
• Sealing method: Stainless steel clamp; no caulk used as primary seal
• Temperature range (EPDM): −60°F to +270°F

Q: What penetration range do Deck-Mate flashings cover?
A: The series accommodates approximately 1/8″ up to 26″, depending on the selected DM size.

Q: Why is a clamp used instead of caulk for sealing?
A: The clamp maintains a long-term compression seal; caulk is not recommended as a primary sealer for penetrations.

Q: Will Deck-Mate conform to uneven or pitched metal roofs?
A: Yes. The dead soft aluminum flange bends to match contours, irregularities, and roof pitch.

Q: What material and temperature performance does the boot provide?
A: It uses gray EPDM rubber serviceable from −60°F to +270°F and designed for outdoor exposure.
