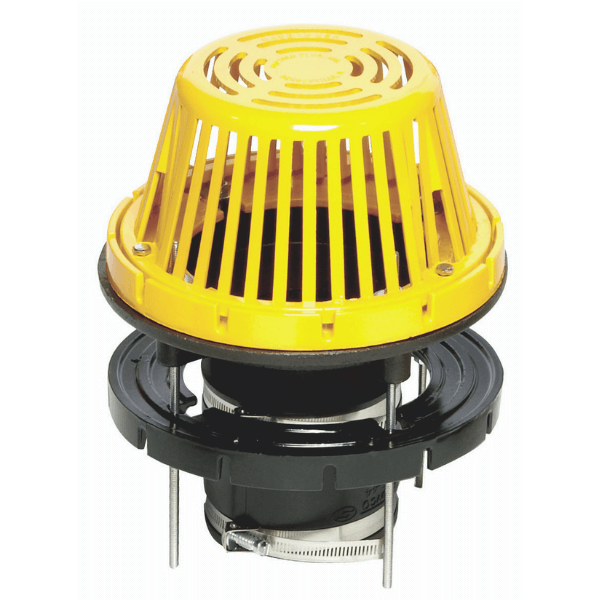

Portals Plus Cast Iron Plus - Poly Dome

For New and Retrofit Installations; Single Ply and BUR Applications

Drain shall consist of a molded ultraviolet stabilized polyethylene or cast aluminum dome strainer, a cast aluminum epoxy coated gravel guard and clamping ring, a cast iron or cast aluminum drain body, a cast aluminum underdeck clamp, and a flexible EPDM connector with stainless steel clamps. Attachment and installation shall be done in accordance with Portals Plus' instructions and the roofing membrane manufacturer's recommendations. (Available in 3", 4" and 6")

Kit Includes:

• Dome strainer bolts securely to clamping ring
• Cast iron drain body
• Epoxy coated aluminum clamping ring with gravel stop. Grooved for positive drainage
• Aluminum underdeck clamp fastens drain securely to deck
• Fernco flexible expansion coupling (Connects to PVC, ABS or Cast Iron Pipe)

Specifications:

Material:

• Body - Cast Iron
• Dome - Cast Aluminum or Plastic
• Clamping Ring - Cast Aluminum
• Under-deck Clamp - Cast Aluminum
• Coupling - EPDM With Stainless Steel

Color:

• Body - Black
• Dome - Yellow
• Clamping Ring -Yellow
• Outlet Type - No Hub

Dimensions:

Flange Size - 11"
