- 26:1 High Thrust Ratio: Delivers controlled manual dispensing for higher-viscosity two-part materials.
- Multi-Size Cartridge Support: Accommodates 300x300 ml, 300x150 ml, 150x150 ml, and 150x75 ml dual cartridges.
- Tool-Free Ratio Switching: Features snap-in/snap-out push disks to quickly change between 1:1 and 2:1 mix ratios.
- Cartridge Stabilizing Plate: Stabilizes cartridges during application to reduce flex and maintain consistent bead output.
Price: $149.85
Item #321-535-XSP
Write a review!
Description

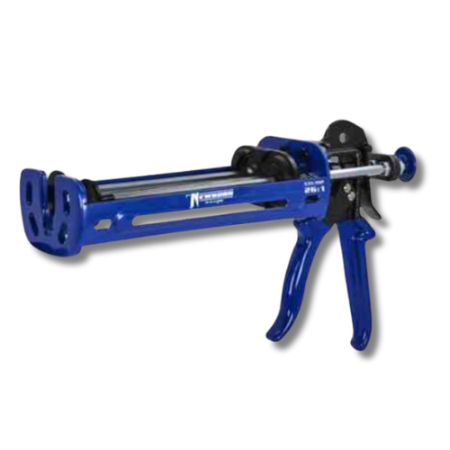

The Newborn 535-XSP Multi Ratio Applicator is a manual tool for dispensing two-part materials from dual cartridges. It supports multiple mix ratios and cartridge sizes, allowing users to switch between configurations quickly without disassembling the tool.
This applicator is built for controlled output of higher-viscosity adhesives and sealants used in bonding, anchoring, and structural applications. Its durable construction and easy-convert push disk system help maintain consistent bead quality.
Key Features
- 26:1 thrust ratio for strong, controlled dispensing of two-part materials
- Supports multiple cartridge sizes, including 300 ml x 300 ml, 300 ml x 150 ml, 150 ml x 150 ml, and 150 ml x 75 ml
- Patented snap-in/snap-out push disks for quick mix ratio changes without tools
- Patented cartridge stabilizing plate for consistent bead output
- Heat-treated piston rod for durability under heavy use
- Precision sintered friction plate for smooth feed performance
- Easy-release star-burst reverse gripping plate for rapid pressure relief
- Alloy handle with comfort grip for handling control
Specifications
Applicator type: Manual dual component applicator
Thrust ratio: 26:1
Supported cartridge sizes: 300 ml x 300 ml; 300 ml x 150 ml; 150 ml x 150 ml; 150 ml x 75 ml
Supported mix ratios: 1:1 and 2:1 configurations via push disks
Drive components: Heat-treated piston rod, precision sintered friction plate
Cartridge support: Stabilizing plate
Pressure relief: Star-burst reverse gripping plate
Handle: Alloy with comfort grip
Power type: Manual
FAQs
Q: How practical is this applicator if you regularly switch between different mix ratios on the job?
A: The snap-in push disk system allows ratio changes without disassembling the tool, which can save time when moving between different dual-cartridge materials.
Q: Does the stabilizing system actually improve control with longer dual cartridges?
A: The cartridge stabilizing plate helps support longer cartridges during dispensing, which can improve alignment and reduce flex under load.
Q: Who is this applicator best suited for compared to a single-ratio dual cartridge gun?
A: This model is a better fit for users who work with multiple cartridge sizes or mix ratios, rather than sticking to a single adhesive system.
