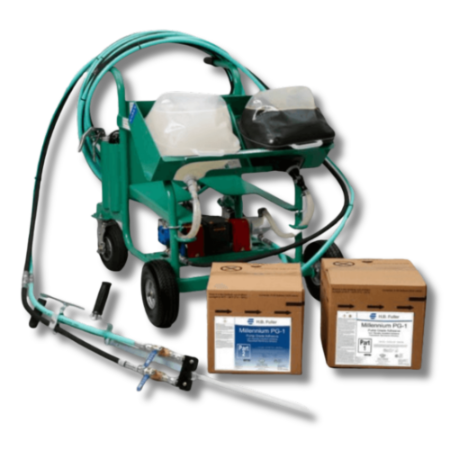

Millennium Cyclone Low Pressure Pump Cart

Patented Millennium Cyclone* low pressure adhesive pump cart is a bulk delivery system specifically designed to dispense two component 1 : 1 ratio low viscosity polyurethane adhesives. These adhesives are widely used to adhere rigid insulation and coverboards to structural roof decks as well as to adhere fleece backed single-ply membranes in both new roofing and recover applications. The Cyclone includes 1 applicator nozzle and 50 feet of hose.

Features:

• Lightweight & Portable
• Clean, Contained delivery system
• Quick and easy application
• Solid core tires
• Adjustable gun assembly
• Dual pump system
• Single aperture

Benefits:

• Applicator and hoses stay clean and free flowing, low maintenance
• perfect for large congested rooftops
• Prevents flat tires
• Ergonomic design
• Reduces risk of catastrophic pump failure and lowers maintenance cost
• Easy connections

Surface Preparation:
All work surfaces should be clean, dry, and free of dirt, dust, debris, oils, loose and/or embedded gravel, un-adhered coatings, deteriorated membrane and other contaminants that may result in a surface that is not sound or is uneven. In recover applications Millennium Surface Treatment or Millennium Universal Primer may be required. Contact Royal’s Technical Service Department for more information.

Start-Up:
Make sure the manifold valves are in the OFF mode and motor is turned off.
1. Insert adhesive bladder labeled Part 1 into the tray labeled Part 1. Apply small amount of non-lithium grease to female end of quick connect coupling. Attach quick connect fitting on bladder to the Part 1 pump inlet hose.**
2. Insert adhesive bladder labeled Part 2 into the tray labeled Part 2. Apply small amount of non-lithium grease to female end of quick connect coupling. Attach quick connect fitting on bladder to the Part 2 pump inlet hose.
3. With the manifold in the OFF mode, flip power switch to “on”.
4. Slowly open manifold valves, motor will start automatically. Let a small amount of material flow out into a waste container to ensure that an equal amount of material is coming out of each manifold port.
5. Shut off manifold valves, motor will stop automatically when shut-off pressure is reached.
6. Wipe threaded portion of manifold clean with rag, apply non-lithium grease to threaded portion of manifold.
7. Attach static mixing nozzle to applicator manifold using retaining nut or one piece mixing nozzle. Ensure that it is completely seated and then begin applying adhesive.
8. Apply adhesive directly to the substrate as recommended by the product manufacturer.

Shut Down and Extended Breaks:
1. Close manifold valves.
2. Turn off power.
3. Remove static mixing tip and retaining nut (if needed) and discard.
4. Relieve any pressure in hoses by opening and closing applicator valves.
5. Pump a non-lithium grease into both grease fittings on the gun manifold until it flows out of the tip. Install grease into the part 1 (A) grease fitting first.

CAUTION: Remove static mixing nozzle during any pause in application or operation. Do not allow pressure to build up in the static mixing nozzle. If static mixing nozzle remains on applicator manifold, material can react and harden in the manifold and possibly the ends of the hoses. During removal and attachment of static mixing nozzles, a wrench may be necessary for removal. Clean manifold threads and re-grease frequently.
