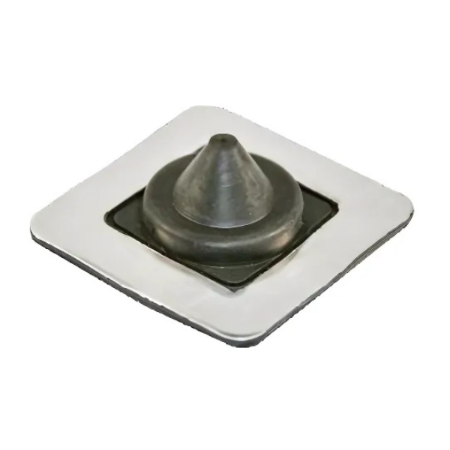

Aztec Washer Company SQ051GA - Master Flash Square Flashing - Mini ( 2-1/4 in)

The Aztec Washer SQ051GA Standard Master Flash is a small-size pipe flashing designed for solar and electrical applications. Manufactured from gray EPDM, it provides long-term resistance to UV, ozone, and weathering. The flexible sleeve accommodates vibration and pipe movement, while the soft base conforms to most roof panel profiles for a secure, watertight seal. This model is the smallest in the Master Flash series, engineered for precise conduit and pipe penetrations.

Key Features:

• Gray EPDM compound for durability and weather resistance.
• Sleeve flexibility allows for vibration and pipe movement.
• Trim-to-fit sleeve with clearly marked cut lines for easy installation.
• Compact base designed for small solar or electrical pipe applications.

• Part number: SQ051GA
• Material: Gray EPDM
• Pipe range: Closed to 1 in (0–25 mm)
• Base size: 2-1/4 in (57 mm)
• Application: Smallest Master Flash option, for solar and electrical penetrations
• Temperature resistance: EPDM up to 212 °F (100 °C) continuous, 275 °F (135 °C) intermittent
• Warranty: 35 years (ICC-listed standard Master Flash)

Q: What sealant should be used with SQ051GA?
A: Use urethane or silicone sealant. Avoid petro-chemical-based sealants.

Q: Is SQ051GA suitable for use on metal roofs?
A: Yes, the base adapts to most roof panel configurations and pitches.

Q: Can SQ051GA be used for high-temperature applications?
A: For applications above 212 °F (100 °C), a silicone version should be used instead of EPDM.

Q: Why choose gray EPDM instead of black?
A: Some installers prefer gray for aesthetics, though performance is the same as black EPDM.
