EPDM White Cap Option Available Upon Request
TPO or PVC Coated Flange Option Available Upon Request
Price: $74.95
Item #305-BUNIBOOT
Write a review!
Description

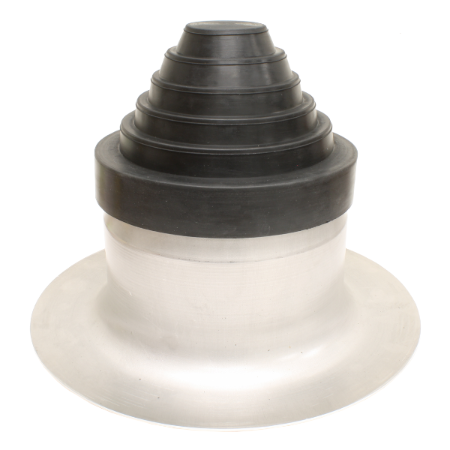

The Marathon Uniboot is a watertight, maintenance-free seal for roof penetrations, eliminating the need for pitch pans. It features a durable EPDM cap mechanically sealed to a spun aluminum base and secured with stainless steel clamps. The UniBoot accommodates pipes from ¼″ up to 7″ in diameter, standing 9-3/4″ tall, with a large flange to securely flash around penetrations.
Key Features:
-
EPDM cap designed for maximum resistance to weathering, ozone, UV, hot and cold temperatures
-
Mechanically sealed to dual beads on aluminum base, with grooves on cap for better seal performance
-
Stainless steel clamps included for added seal security
-
Accommodates pipe sizes ranging from ¼″ up to 7″
-
Flange size large for proper flashing; optional finishes include coated or color options
Specifications
- Material: EPDM rubber cap; spun aluminum base
-
Cap height (with rubber boot): 9-3/4″
-
Flange diameter: 14″
-
Stack diameter: 8″
-
Aluminum base height (stack height): 6-1/4″
-
Accommodated pipe size range: from ¼″ to pipes 3-7″ diameter; two steel bands provided: one sized for 3-5″ pipes and one for 5-7″ pipes
How To
- Select UniBoot model for your job; ensure pipe size falls between ¼″ and 7″.
-
Prepare the roof penetration by ensuring the pipe and surrounding membrane are clean.
-
Slide the EPDM cap over the pipe, down to the base; ensure the dual beads and grooves align.
-
Secure the cap using the provided stainless steel clamps appropriate for your pipe size.
-
Position the flange so it lays flat over the roof membrane around the penetration.
-
Flash or coat the flange as required for your roofing system and desired finish.
FAQs
Q: What pipe sizes does UniBoot fit?
A: It fits pipes from ¼″ up to 7″ in diameter.
Q: What materials is UniBoot made of?
A: EPDM rubber cap and spun aluminum base, with stainless steel clamps.
Q: How tall is UniBoot?
A: 9-3/4″ tall with the rubber boot installed.
Q: What are the flange and stack dimensions?
A: Flange is 14″ diameter; stack diameter is 8″; base height (stack height) is 6-1/4″.
Q: Are there options for different finishes?
A: Yes. Options include white EPDM cap, PVC or TPO coated flange.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
