Options Available Upon Request
7.5 aluminum strainer
TPO coated flange
PVC coated flange
Was: $244.15
Price: $244.15Sale: $244.15
Item #
Write a review!
Description

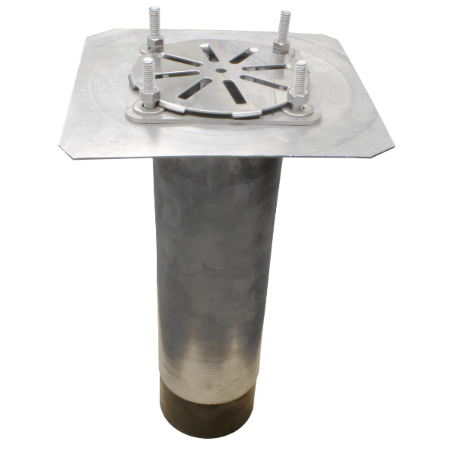

The Marathon Aluminum Gutter Drain retrofit series (BGUTTERALB variants) is designed for tight roof conditions such as gutters or corners where removal of existing drains is difficult. Constructed with a heavy gauge spun aluminum body, each drain includes options for ProSeal mechanical seal or tape seal, and choices between stainless steel snap-on flat grates or 5″ aluminum strainers. All models come with an 8″ × 8″ flange and a 12″ outlet, and are available in 3″ and 4″ sizes.
Key Features:
-
Body: heavy gauge spun aluminum
-
Seal options: ProSeal seal or Tape seal
-
Strainer options: flat stainless steel snap-on grate or 5″ aluminum strainer
-
Flange size 8″ × 8″ with 12″ outlet
-
Designed for retrofit installation in gutters or corners
Specifications
- Body material: Heavy gauge spun aluminum
-
Clamping ring: 5″ × 5″ stainless steel
-
Flange dimensions: 8″ × 8″
-
Outlet length: 12″
-
Sizes/Part Numbers:
• 3″ – BGUTTERALB3 (with ProSeal + stainless steel grate)
• 4″ – BGUTTERALB4 (with ProSeal + stainless steel grate)
• 3″ – BGUTTERALB3AS (with ProSeal + 5″ aluminum strainer)
• 4″ – BGUTTERALB4AS (with ProSeal + 5″ aluminum strainer)
• 3″ – BGUTTERALB3T (with Tape seal + stainless steel grate)
• 4″ – BGUTTERALB4T (with Tape seal + stainless steel grate)
• 3″ – BGUTTERALB3TAS (with Tape seal + 5″ aluminum strainer)
• 4″ – BGUTTERALB4TAS (with Tape seal + 5″ aluminum strainer) - Seal/Outlet & Flow Data:
- 3″ models: Starting OD of seal/outlet 2.85″; Fits pipe ID 2-7/8″-3-1/4″; Maximum expansion diameter 3.40″; ID of seal 2.19″; Flow ~ 45 GPM
- 4″ models: Starting OD of seal/outlet 3.80″; Fits pipe ID 3-7/8″-4-1/4″; Maximum expansion diameter 4.40″; ID of seal 3.12″; Flow ~ 85 GPM
How To
- Determine whether you need a 3″ or 4″ outlet variant, and whether you want ProSeal or Tape seal, and which strainer type.
-
Clean the existing drain area and ensure roof deck is clear.
-
Place aluminum gutter drain so flange lies flat on the roof surface with a 12″ outlet aligned with existing pipe.
-
If using ProSeal, compress it using the ProSeal screwdriver tool; if using tape seal, install accordingly.
-
Snap on or bolt the chosen strainer or grate (stainless steel or aluminum).
-
Flash flange as required (PVC/TPO coatings available if specified).
FAQs
Q: What seal options are available in the BGUTTERALB series?
A: There are ProSeal mechanical seals and tape seal versions.
Q: What strainer or grate styles can I pick?
A: Options include a flat stainless steel snap-on grate or a 5″ aluminum strainer.
Q: What sizes do these gutter drains come in?
A: They are available in 3-inch and 4-inch outlet sizes.
Q: What are the standard flange size and outlet length?
A: Flange is 8″ × 8″ and outlet length is 12″ for all models.
Q: How much flow capacity do the 3″ and 4″ models have?
A: 3″ models ~ 45 GPM, 4″ models ~ 85 GPM under standard test head.
