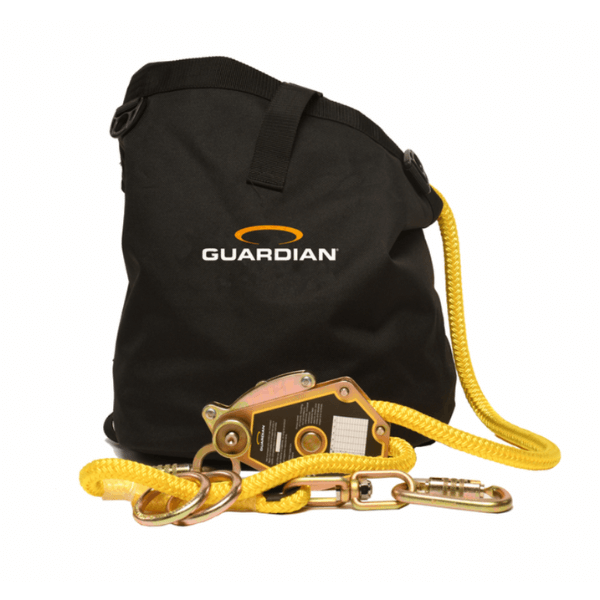

Guardian Fall Protection HTL30 - 2-Man Horizontal Temporary Lifeline, 30' Rope

The Guardian Fall Protection 04663 HTL30 2-Man Horizontal Temporary Lifeline is a portable, easy-to-install system that provides secure fall protection for up to two workers on elevated surfaces. Featuring a 30-foot synthetic rope lifeline, the HTL30 is lightweight yet strong, making it ideal for temporary use in construction, roofing, and industrial projects. Its compact design allows quick setup and removal, while the integrated tensioning system ensures the rope remains taut during use. OSHA and ANSI compliant, the Guardian 04663 HTL30 delivers reliable fall safety for short-term applications requiring mobility and ease of use.

Key Features:
• 30 ft. horizontal temporary lifeline for two workers
• Lightweight rope design for portability and easy setup
• Integrated tensioning system maintains proper rope tautness
• Compact, reusable design for multiple jobsite applications
• OSHA 1910/1926 and ANSI Z359 compliant

• Model: Guardian HTL30 Horizontal Temporary Lifeline

• Part Number: 04663

• Length: 30 ft. synthetic rope

• Capacity: Up to 2 workers

• Material: High-strength synthetic rope, alloy steel hardware

• Design: Portable, reusable horizontal lifeline system

• Application: Temporary fall protection on elevated work surfaces

• Includes:

– 30 ft. rope lifeline

– 2 O-rings for tie-off connection

– Rope tensioner

– 2 double-locking snap hooks

– Carry/storage bag

• Compliance: ANSI Z359, OSHA 1910/1926

• Inspect rope, connectors, and tensioning system for damage before use.
• Select two approved anchorage points capable of supporting system loads.
• Attach rope lifeline ends securely to anchor points.
• Use integrated tensioning system to adjust rope tautness.
• Connect worker lanyards or SRLs to the lifeline with approved O-rings.
• Ensure system remains tensioned and secure during use.

Q: How long is the Guardian 04663 HTL30 lifeline?
A: It has a total length of 30 feet.

Q: How many workers can use the HTL30 at the same time?
A: It is rated for up to 2 workers simultaneously.

Q: What is included in the HTL30 kit?
A: It includes a 30 ft. rope lifeline, 2 O-rings, rope tensioner, 2 snap hooks, and a storage bag.

Q: Is the lifeline portable and reusable?
A: Yes, it is designed for temporary use and can be reused when properly inspected.

Q: Does the 04663 meet OSHA and ANSI standards?
A: Yes, it complies with OSHA 1910/1926 and ANSI Z359 requirements.
