New!
- Features an ultra-strong 10,000-pound load rating engineered for the most demanding fall arrest and industrial anchorage requirements
- Equipped with a dual-swivel design that provides full 360-degree worker mobility to reduce lifeline tangling and improve efficiency at height
- Utilizes a permanent weld-on puck assembly that ensures a secure and stable connection to structural steel without the need for fasteners
- Constructed from heavy-duty high-strength steel with a yellow zinc finish for superior durability and resistance to harsh jobsite environments
- Designed for permanent or semi-permanent applications where the anchor can be removed and reused while the welded puck remains in place
Price: $106.88
Item #GUA-10015
Write a review!
Description

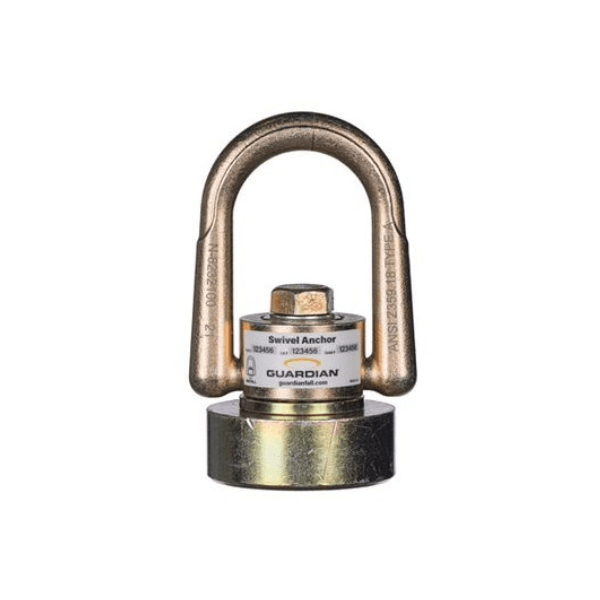

The Guardian Fall Protection Swivel 10K Steel Anchor and Steel Weld-On Puck Assembly (10015) is an ultra-strong fall protection solution designed for permanent or semi-permanent anchorage in steel structures. Engineered with high-strength steel, this anchor system features a swivel design for worker mobility and a weld-on puck assembly that ensures secure installation. Rated to 10,000 lbs., the 10015 anchor is built for demanding construction, maintenance, and industrial environments where maximum fall protection performance is required.
Key Features:
-
10,000 lb. rated steel anchor system
-
Swivel design for 360-degree worker mobility
-
Weld-on puck assembly ensures secure installation in steel
-
Heavy-duty steel construction for durability and reliability
-
OSHA-compliant permanent/semi-permanent fall protection solution
Specifications
- Model: 10015
-
Anchor Type: Swivel 10K Steel Anchor with Weld-On Puck Assembly
-
Material: High-strength steel
-
Rating: 10,000 lbs.
-
Application: Permanent/semi-permanent anchorage on steel structures
-
Includes: Swivel 10K Steel Anchor and weld-on puck assembly
How To
- Identify a compatible steel structure suitable for welding installation.
-
Prepare the weld area by cleaning and grinding for proper bonding.
-
Position the steel puck assembly at the designated anchorage point.
-
Weld the puck assembly securely to the steel structure per manufacturer guidelines.
-
Attach the swivel 10K steel anchor to the welded puck.
-
Inspect weld integrity and anchor components before use to confirm OSHA compliance.
FAQs
Q: What is the load rating for the 10015 anchor?
A: It is rated for 10,000 lbs.
Q: What surfaces is this anchor designed for?
A: It is specifically designed for welding to steel structures.
Q: Is the anchor reusable?
A: Yes, the anchor is reusable, but the welded puck is permanent.
Q: Does the anchor provide mobility?
A: Yes, the swivel design allows for 360-degree worker mobility.
Q: Does this system meet OSHA requirements?
A: Yes, it is OSHA-compliant when installed according to guidelines.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
