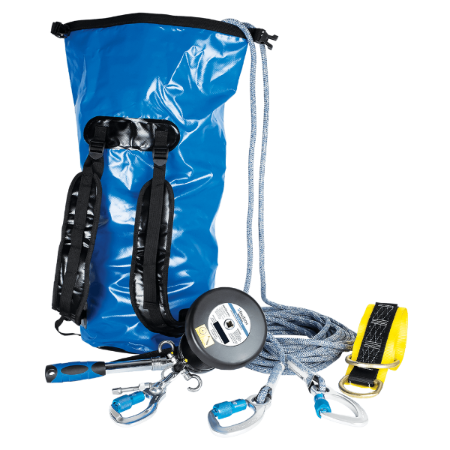

FallTech - Rescue and Descent Worksite Kit with Storage bag

The FallTech UniDrive Rescue & Descent Worksite Kit series delivers comprehensive fall protection and rescue capabilities for industrial and construction sites. Available in three rope lengths (150 ft for model 6814150K, 300 ft for model 6814300K, and 500 ft for model 6814500K), each kit includes a 7/16″ sheathed-core kernmantle rope lifeline, bi-directional descent capability, three modes of lifting operation (handwheel, ratchet handle, power drill adapter), and comes in a backpack-style storage bag. These kits support both self-rescue and assisted descent/lift operations and comply with ANSI Z359.4-2013 standards.

Key features:

• 7/16″ sheathed-core kernmantle rope lifeline built to resist moisture and abrasion for longer life
• Triple-mode lifting operation: handwheel, ratchet handle (12″-18″ extension) and power-drill adapter for versatility in rescue and ascent tasks
• Bi-directional design allows shuttle operation for successive descending users or lifting of materials
• High-capacity kit in a backpack-style storage bag for portability, includes anchor choker, belay hooks, carabiners and more

• Max descent height: 524 ft for 2 users
• Max descent load: 440 lb for 2 users
• Descent speed: 2.6 ft per second for 1 user
• Cumulative descent distance: 25,200 ft or 48 descents with a 220 lb load
• Cumulative descent distance: 2,620 ft or 5 descents with a 440 lb load
• Max lifting height: 524 ft at 440 lb
• Max work lifting load: 308 lb
• Rope: 7/16-inch kernmantle polyamide blend
• Connectors: Aluminum alloy, 5,000 lb minimum static strength with 3,600 lb gate strength
• Housing: Powder-coated aluminum

Q: What is the difference among the three models 6814150K, 6814300K and 6814500K?
A: The differences are the supplied rope lengths. The 6814150K includes a 150-foot rope, the 6814300K includes a 300-foot rope, and the 6814500K includes a 500-foot rope.

Q: What kinds of rescue operations can these kits handle?
A: They support self-rescue, assisted rescue, controlled descent and lifting operations using the UniDrive mechanical device.

Q: What is the maximum rated load for descent operations?
A: The kits support a maximum descent load of 440 pounds.

Q: What type of lifeline is included with these kits?
A: Each kit includes a 7/16-inch sheathed-core kernmantle rope designed for durability, smooth operation and resistance to wear.

• Features a versatile bi-directional design that allows for "shuttle" operation, enabling successive descending users or efficient lifting of materials and personnel
• Equipped with a triple-mode lifting system, including a handwheel, an extendable 12"–18" ratchet handle, and a power-drill adapter for maximum mechanical advantage during rescue tasks
• Utilizes a high-performance 7/16-inch sheathed-core kernmantle rope lifeline, specifically engineered for extreme moisture resistance and superior durability in industrial environments
• Supports high-capacity operations with a maximum descent load of 440 lbs for two users and a maximum lifting/descent height of up to 524 feet
• Provides a constant, controlled descent speed of 2.6 feet per second for a single user, ensuring a safe and stable evacuation process
• Includes a complete hardware package featuring aluminum alloy connectors, an anchor choker, and belay hooks, all housed in a rugged backpack-style storage bag for rapid deployment
• Fully compliant with ANSI Z359.4-2013 standards, supporting up to 48 successive descents with a 220 lb load or 5 descents with a 440 lb load
