FallTech 83208SP - 8' CTX™ Cable Class 2 Leading Edge Personal SRL-P - Single Leg

The FallTech CTX cable Class 2 leading edge personal SRL-P series provides compact, ergonomic fall protection for edge-exposed applications. Each 8 ft single-leg unit uses a 3/16 inch galvanized steel cable lifeline, engineered for Class 2 leading edge performance and below D-ring tie-off up to five feet. An energy absorber cover includes fall clearance charts and tables, while the internal mechanism is designed to minimize unintentional lockups and keep workers moving productively. All models are rated for users from 130 to 310 lb and comply with ANSI Z359.14-2021, CSA Z259.2.2-2017, and OSHA 1926.502 and 1910.66.

Key features:

• Ergonomic design keeps the retractable unit elevated on the back to help reduce fatigue and improve day-long comfort and productivity
• Energy absorber cover includes comprehensive fall clearance charts and tables for quick on-site reference
• Internal mechanism is designed to minimize unintentional lockups while providing smooth movement and reliable arrest in leading edge conditions
• Rated for workers 130 to 310 lb with Class 2 SRL-P performance for below D-ring tie-off up to five feet and leading edge exposures on steel or precast concrete

• SKU: 83208SP0, 83208SP1, 83208SP3
• Product type: 8 ft CTX cable Class 2 leading edge personal SRL-P, single-leg with galvanized steel cable lifeline
• Dimension or compatibility information: 8 ft lifeline length; designed for personal single-leg use and suitable for below D-ring tie-off up to five feet in leading edge applications
• Static Strength: 3,600 lb min
• ANSI SRL Class/Type: Class 2 SRL-P
• Avg. Arrest Force: 1,350 lb max
• Max Arrest Force: 1,800 lb
• Max Arrest Distance: 42 in
• ANSI User Capacity: 130 to 310 lb max
• OSHA User Capacity: 130 to 310 lb max
• Cable material: 3/16 inch galvanized steel cable; 3,600 lb min static strength
• Energy absorber material: polyester tear-away
• Anchorage connector: plated alloy steel; 5,000 lb min static strength with 3,600 lb gate strength
• Dorsal connector: aluminum alloy; 3,600 lb min
• Standards compliance: CSA Z259.2.2-2017; ANSI Z359.14-2021; OSHA 1926.502 and 1910.66
• Installation or application context: suitable for below D-ring tie-off up to five feet and for leading edge exposures and hazards on steel and precast concrete surfaces
• Included components:
  • 83208SP0: single-leg SRL-P with steel mini rebar hook
  • 83208SP1: single-leg SRL-P with steel snap hook
  • 83208SP3: single-leg SRL-P with steel rebar hook
• Design characteristics: compact CTX housing that keeps the unit elevated on the back, energy absorber cover with fall clearance charts, and internal mechanism that minimizes unintentional lockups for smoother movement in leading edge environments

Q: What is the main difference between models 83208SP0, 83208SP1, and 83208SP3?
A: All three share the same 8 ft CTX cable Class 2 leading edge SRL-P design and performance, but they differ in the leg-end connector: 83208SP0 has a steel mini rebar hook, 83208SP1 has a steel snap hook, and 83208SP3 has a steel rebar hook.

Q: In what applications are these CTX cable SRL-P units intended to be used?
A: They are intended for personal fall arrest in environments with leading edge exposure, including work on steel or precast concrete, and are suitable for below D-ring tie-off up to five feet when installed according to the instructions and clearance charts.

Q: What kind of inspection should be performed before using one of these SRLs?
A: Before use, the housing, cable, energy absorber cover, connectors, and labels should be inspected for damage, deformation, corrosion, cuts, kinks, illegible markings, or signs of deployment, and the device should be function-tested to ensure smooth cable retraction and proper lockup.

Q: How do the arrest force and arrest distance specifications affect clearance planning?
A: The specified average arrest force of 1,350 lb max, maximum arrest force of 1,800 lb, and maximum arrest distance of 42 inches are used together with worker weight, harness stretch, and D-ring height in the fall clearance tables supplied in the energy absorber cover to determine the minimum required clearance for a given installation.

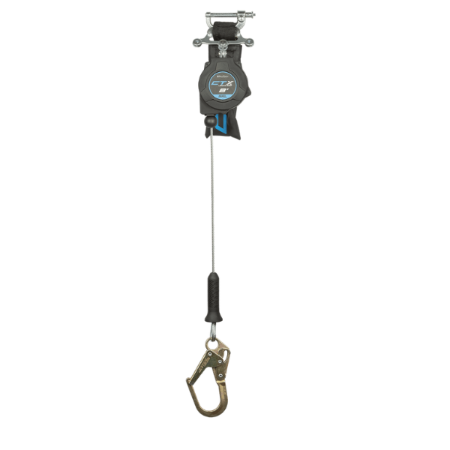

• Steel Mini Rebar Hook - 83208SP0
• Steel Snap Hook - 83208SP1

• Steel Rebar Hook - 83208SP3
