- Engineered specifically for leading-edge applications and scenarios where anchorage may be located up to 5 feet below the user's dorsal D-ring
- Features an upgraded 7/32-inch galvanized steel cable for superior cut and abrasion resistance when the lifeline travels over sharp or exposed edges
- Constructed with a heavy-duty powder-coated aluminum housing to protect internal components from harsh job-site environments and impacts
- Includes an external ViewPack® energy absorber that provides controlled deceleration while preserving the integrity of the lifeline during an edge-contact fall
- Equipped with a load-indicating swivel snap hook that provides a clear visual signal if the unit has been deployed in a fall event
- Utilizes a sophisticated internal inertial braking system with dual disc brakes for reliable and consistent performance
- Fully compliant with ANSI Z359.14 Class 2 and OSHA 1926.502/1910.66 regulations, supporting a user capacity of up to 310 lbs
Price: $1,032.80
Item #FALLTECH-7265CLE
Write a review!
Description

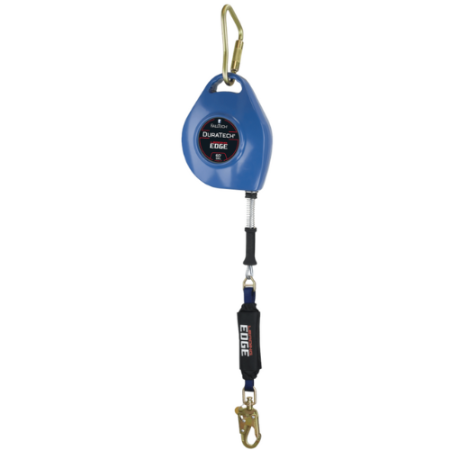

This leading-edge self-retracting lifeline is designed for edges and below-D-ring anchorage scenarios. It features a 7/32″ galvanized steel cable lifeline and an internal inertial braking system with dual disc brakes. The device includes an external ViewPack® energy absorber for deceleration and an aluminum housing for durability. With a 60-ft reach and robust connectors, it supports Class 2 performance for demanding job-site conditions.
Key features:
-
7/32″ galvanized steel cable lifeline for increased cut resistance
-
Load-indicating swivel snap hook for fall event indication
-
External ViewPack® energy absorber to enhance braking and preserve cable integrity
-
Class 2 leading edge rating for anchorage at or below dorsal D-ring and edge exposures
Specifications
- SKU: 7265CLE
-
Cable: 7/32″ galvanized steel; 3,600 lb minimum static strength
-
Energy absorber: polyester tear-away
-
Lifeline connector: plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
-
Anchorage connector: plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
-
Static strength: 3,600 lb minimum
-
ANSI SRL Class/Type: Class 2 SRL
-
Average arrest force: 1,350 lb
-
Maximum arrest force: 1,800 lb
-
Maximum arrest distance: 42″
-
ANSI user capacity: 130 to 310 lb maximum
-
OSHA user capacity: 130 to 310 lb maximum
FAQs
Q: What does the “Class 2 Leading Edge” designation cover?
A: It indicates the SRL is tested for use where the lifeline may travel over a sharp or exposed edge or where anchorage is up to 5 ft below the dorsal D-ring, and meets ANSI Z359.14 requirements.
Q: How does the load-indicating swivel snap hook enhance safety?
A: It provides a visual cue after a fall event so the device can be removed from service and inspected for potential damage.
Q: Why is a 7/32″ cable specified for this model?
A: The larger cable diameter increases resistance to abrasion and cutting when the lifeline may contact or slide over exposed edges.
Q: What should I check on each inspection prior to use?
A: Verify the cable is free of broken strands or kinks, the housing shows no damage or excessive wear, the connectors operate correctly, and the energy absorber is intact.
