FallTech - 4 Person Temp Rope HLL System

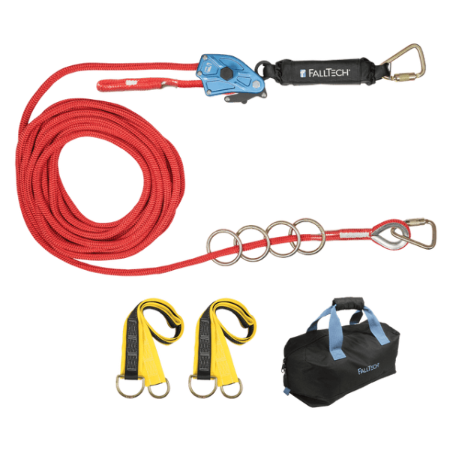

The FallTech 4-Person Temporary Rope Horizontal Lifeline Systems are engineered for quick installation and multi-user fall-protection across spans. Each system includes a 5/8″ double-braid polyester rope lifeline with steel thimble and stitched end-termination, a line tensioner with integral energy absorber and anchorage-end carabiner, four connecting rings, two heavy-duty pass-through anchor straps and an 18″ gear bag for transport. The systems are rated for up to four users simultaneously and meet OSHA 1926.502 regulations.

Key features:

• 5/8″ double-braid polyester rope lifeline designed for temporary horizontal anchorage and multi-user loads
• Integral energy absorber and tensioner assembly enable quick setup and controlled deceleration
• Includes hardware kit: four connecting rings, pass-through anchor straps, gear bag for ease of transport
• Available in three lengths (30 ft, 60 ft, 100 ft) to accommodate different span requirements

• SKUs: 772030, 772060, 772100
• Product type: 4-Person Temporary Rope Horizontal Lifeline System
• Lifeline material: 5/8″ double-braid polyester rope; 6,000 lb minimum static strength for rope.
• Connecting rings: Plated alloy steel; 5,000 lb minimum static strength.
• Carabiners: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength.
• Sling anchors (webbing with D-rings): Polyester webbing with plated alloy steel D-rings; 5,000 lb minimum static strength.
• Tensioner assembly: Aluminum alloy and stainless steel; 6,000 lb minimum static strength.
• Maximum users: 4 users simultaneously.
• Standards compliance: OSHA 1926.502.

Q: What is the difference among the three models 772030, 772060, and 772100?
A: The difference is the overall lifeline length: the 772030 is 30 feet long, the 772060 is 60 feet long, and the 772100 is 100 feet long.

Q: How many users can be attached to these horizontal lifeline systems at once?
A: All three systems are rated for up to four users simultaneously, with each user and their gear accounted for in capacity.

Q: What lifeline material is used in these systems and why is that important?
A: These systems use 5/8″ double-braid polyester rope with steel thimble and stitched end-termination, offering high strength (6,000 lb minimum static), durability and suitability for temporary anchorage spans.

Q: What major hardware components are included with each system?
A: Each system includes four connecting rings, two heavy-duty pass-through anchor straps, an additional thimble-end carabiner, a tensioner with energy absorber assembly, and an 18″ gear bag for transport and storage.
