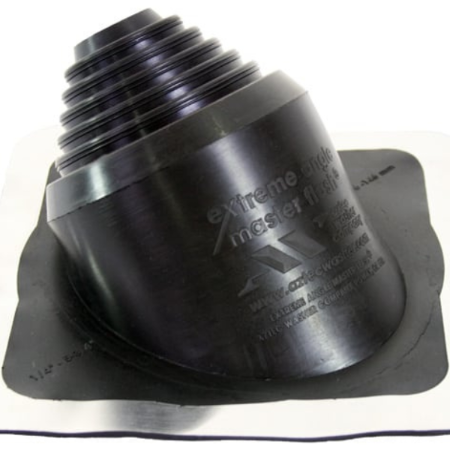

Aztec Washer Company, #EA101BA Extreme Angle Master Flash

The Extreme Angle Master Flash is designed for applications with a 30 - 65 degree angle, while accepting and responding to the most commonly encountered pipe penetrations

Features:

Weather Protection:

• Made of EPDM these flashing are compounded specifically to maximum resistance to weathering due to ozone and ultraviolet light

Adaptable Base:

• The base is designed to mold to most panel configurations and roof pitches regardless of pipe location

Modification made Simple:

• Easy to see pipe diameters make for painless On-site installation

Built in 40 degree pitch:

• Allow to handle any extreme pitch (35-65 degrees) sleeve flexibility accommodates vibration and pipe movement caused by Expansion/Contraction
• Easy On-site customization accommodates all normal installations

Applications:

• Round vent pipes
• High slope standing seam metal roofing

Pipe Size:

• 1/4 in. - 5-3/4 in. (6-146mm)

Flashing Details:

• Top opening diameter: Closed
• Cut to suit pipe size: 1/4 in. - 5-3/4 in. (6-146mm)
• Base dimensions: 11 in. (279mm)

Advanced Ozone Resistance tested to:

• 70 hour @ 500 pphm

High Temperature Resistance tested to:

• Intermittent: +135C (+275F)
• Continuous: +100C (+212F)

Low Temperature Resistance tested to:

• -55C (-67F)

Compression Set Maximum:

• 25%
