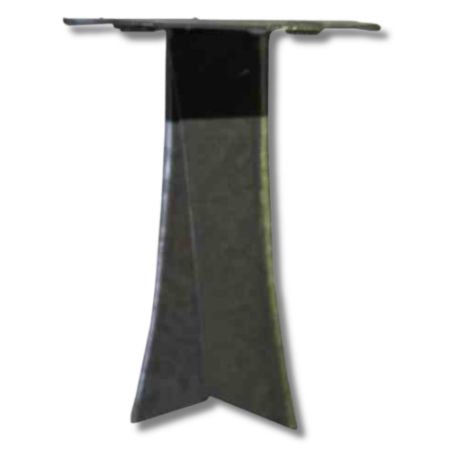

ES Products, 1010 FM-60 Fasteners - 3,000/Carton

FM-60 fasteners are mechanical roofing fasteners used to secure insulation and other roofing components to approved roof decks in commercial roofing systems. The fasteners are driven like a nail and are designed to seat flush with the roofing surface during installation.

As the fastener is driven, dual gripping legs diverge and wedge into the deck material, helping anchor the fastener without the need for pre-drilling. Each carton contains 3,000 fasteners for large-scale commercial roofing applications.

Key Features

• Dual gripping leg design anchors fastener into the roof deck
• Polymer-coated steel construction for corrosion resistance
• Driven like a nail using an ES Magnetic Driver
• Designed to seat flush with the roofing surface
• Maintains Factory Mutual (FM) and Underwriters Laboratories (UL) approvals

Approvals: FM-60 fasteners maintain Factory Mutual and Underwriters Lab Approvals.

Fastening Pattern: Consult Factory Mutual or Underwriters Lab

requirements for recommended pattern in normal, exposed, and

hurricane areas.

Field Testing: On-site withdrawal testing should always be

performed to evaluate the ability of the roofing substrate to satisfactorily accept and retain fasteners. Such testing may alter fastener

selection and modify applicable fastening patterns.

Equipment: Always use the ES Magnetic Driver to assure proper

fastener installation.

Method: Drive FM-60 as an ordinary nail. DO NOT TOE. Seat cap

flush with roofing surface (see illustration).

Operation: As FM-60 is driven, dual legs diverge and cut a plug of

deck material that wedge and anchor the FM-60 in its own hole. No

pre-drilling is required.

Packaging: 3,000 FM-60 fasteners per carton. Gross weight: 57 lbs.

Shrink wrapped and palletized.

Fastener Type: FM-60 roofing fastener

Material: Polymer-coated steel

Leg Design: Dual rectangular gripping legs (1.7 in.)

Installation Method: Driven like a nail with ES Magnetic Driver

Approvals: Factory Mutual (FM) and Underwriters Laboratories (UL)

Packaging: 3,000 fasteners per carton

Carton Weight: 57 lbs

Q: What type of roof deck are FM-60 fasteners typically used with?
A: FM-60 fasteners are commonly used to secure insulation and roofing components to approved roof deck materials in commercial roofing systems.

Q: How do FM-60 fasteners stay anchored in the deck?
A: As the fastener is driven, its dual legs spread apart and cut into the deck material, creating a wedging action that helps hold the fastener in place.

Q: Does the fastener sit above or flush with the roofing surface?
A: FM-60 fasteners are designed to seat flush with the roofing surface when properly installed.
