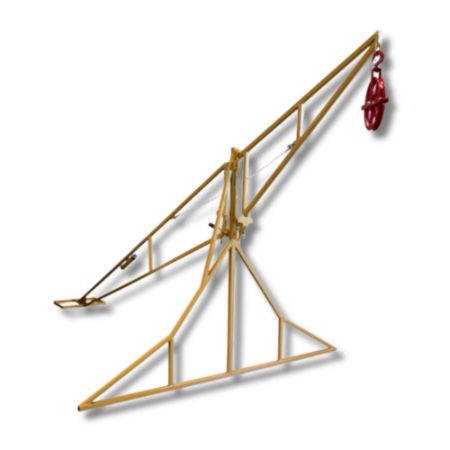

All Seasons Equipment 102004 - 300 lb Hand Swing Hoist

The All Seasons Equipment 300 lb Hand Swing Hoist is a manual hoist designed for lifting up to 300 lb of materials on residential or commercial roofing and construction jobs. It features a swing-boom that can be adjusted left or right, plus a lever-locking system for secure boom positioning. The hoist is manually operated, compact and portable — ideal for lightweight materials and smaller jobsites. It requires separate purchase of counterweights and a gin wheel, giving flexibility to configure the hoist to match job demands.

Key Features:

• 300 lb lifting capacity for lightweight material loads
• Swing-boom design adjustable left or right for flexible load positioning
• Lever-style locking system for secure and stable boom setup
• Manually operated — no engine or power source required, maximizing portability

Model / SKU: 102004

Product type: 300 lb hand swing hoist (manual)

Lift capacity: 300 lb

Boom type: Swing-boom, adjustable left or right

Locking system: Lever-style boom-lock mechanism

Counterweight: Required, sold separately

Gin wheel: Sold separately (e.g. 12″ gin wheel model ASE 102005)

Empty weight (hoist with rear counterweight): approximately 163 lb total (rear counterweight ~75 lb, vertical boom ~64 lb, swing boom ~24 lb)

Approximate assembled dimensions: 48″ × 24″ × 36″

Q: Does the hoist come ready to lift materials out of the box?
A: No — the hoist includes the swing-boom and frame only. Counterweights and a gin wheel must be purchased separately.

Q: What is the load capacity of this hoist?
A: 300 lb.

Q: Can the boom swing to either side?
A: Yes — the boom swings left or right and locks in place using a lever-style lock.

Q: What is the assembled weight of the hoist (with counterweight)?
A: Approximately 163 lb (including rear counterweight, vertical boom, and swing boom).
