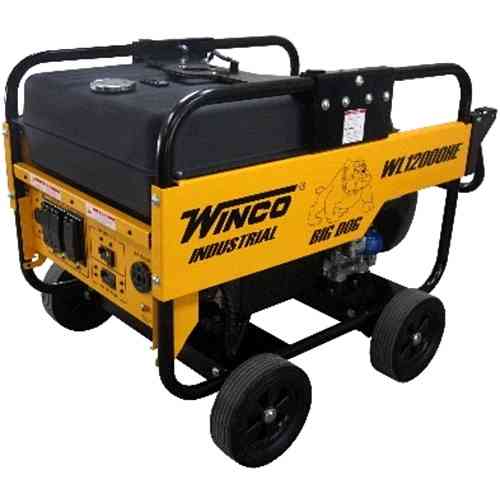

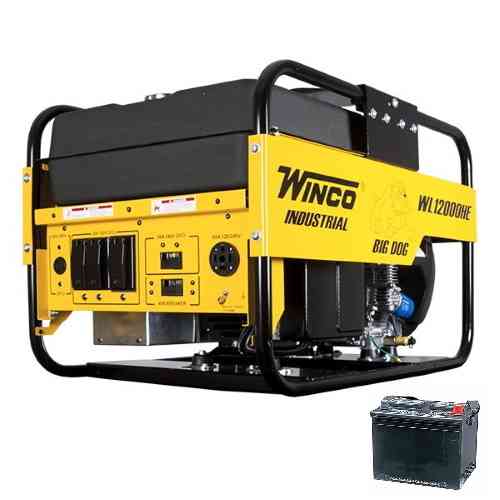

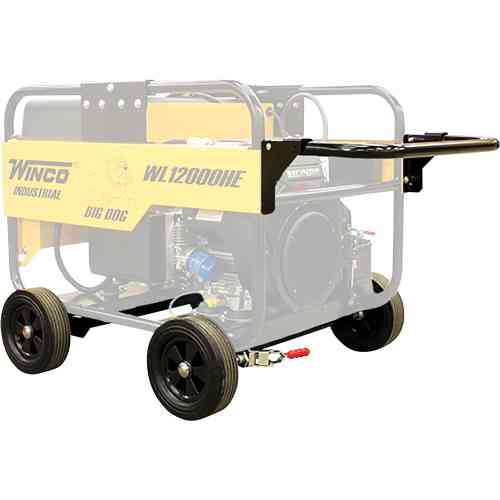

Generator assembly included in cost. Batteries and wheel kit are Not included in base price. Please select drop down option to add battery and/or wheel kit to your order.
Was: $5,400.40
Price: $5,400.40Sale: $5,400.40
Item #168-WL12000HE
Write a review!
Description

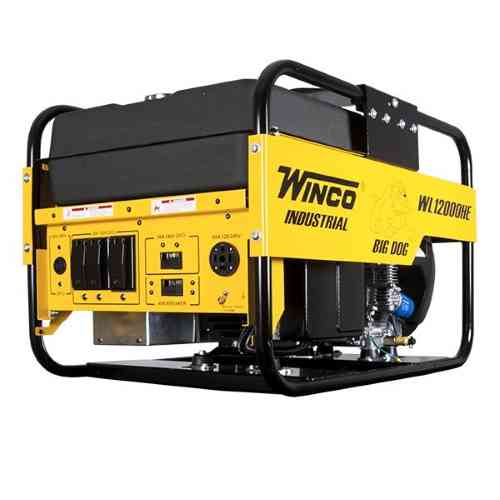

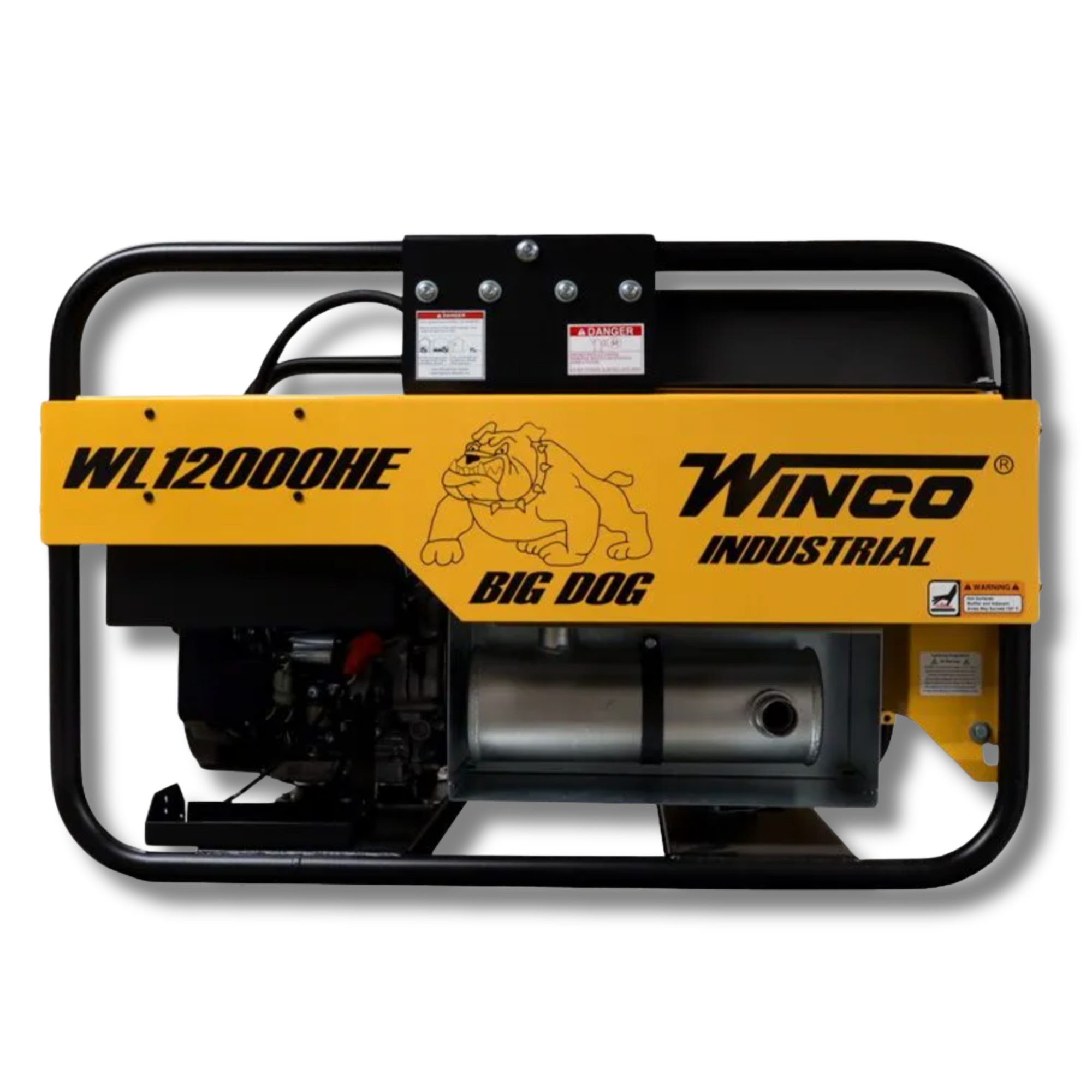

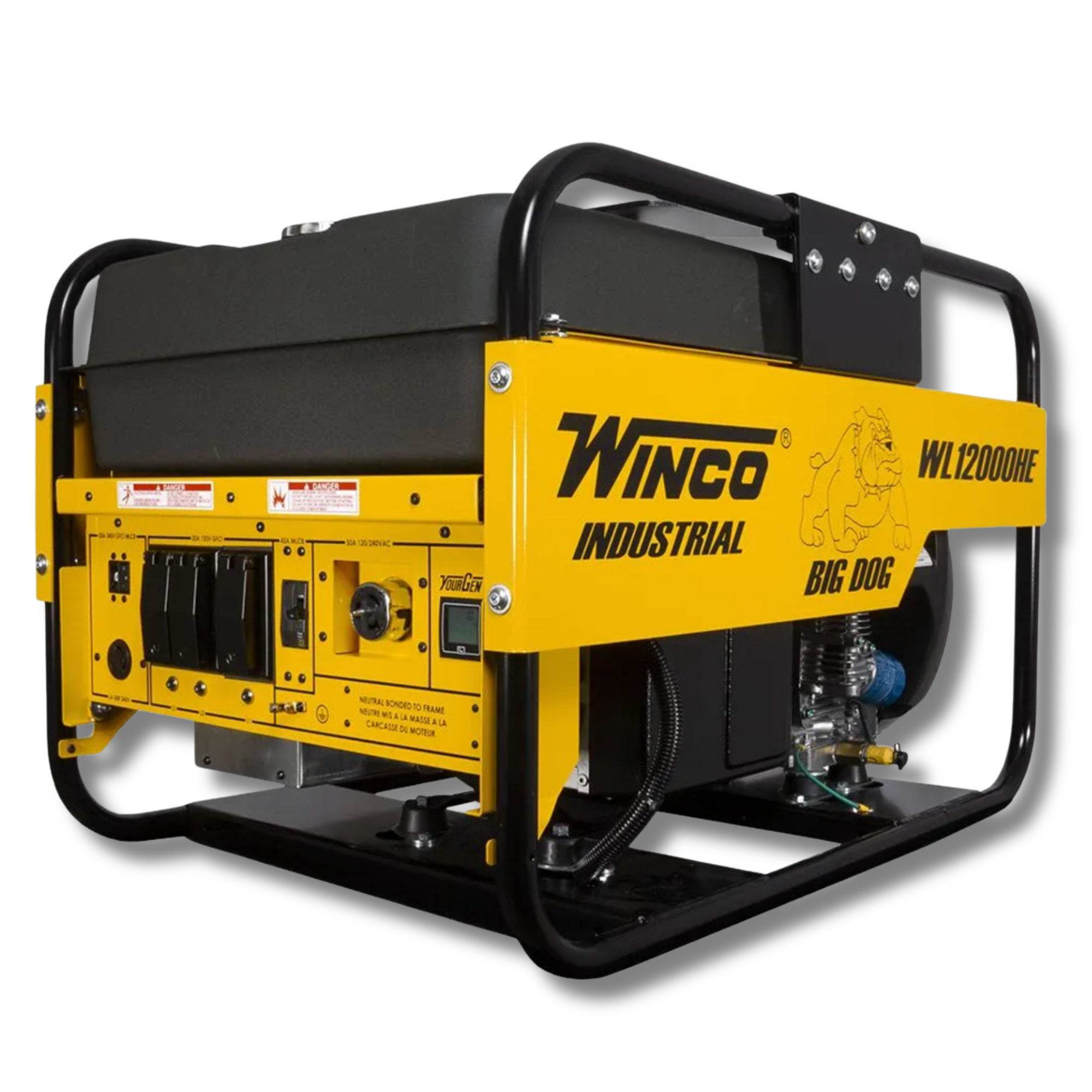

The Winco WL12000HE is a rugged Big Dog series portable generator engineered for high-demand applications. Offering 12,000 surge watts and 10,800 continuous watts, it is powered by a Honda GX630 V-twin engine with electric start. Built on a powder-coated tubular steel frame and equipped with a 15-gallon fuel tank, this generator is designed for reliable, extended performance.
Key Features
-
12,000 watts surge / 10,800 watts continuous
-
Honda GX630 V-twin engine with electric start and low oil shutdown
-
YourGen LED meter with hours, voltage, frequency, and load bar
-
Rugged tubular steel cradle with powder-coat finish
-
15-gallon fuel tank for long runtime
Specifications
- Model: WL12000HE
-
SKU: WL12000HE
-
Max power rating: 12,000 W
-
Continuous power rating: 10,800 W
-
Voltage: 120/240 V, single phase
-
Continuous current rating: 90 A @ 120 V / 45 A @ 240 V
-
Motor starting ability (Code G): 6 HP
-
Engine make/model: Honda GX630
-
Displacement/type: 688 cc / OHV
-
Cylinder sleeves: Cast iron
-
Fuel type: Gasoline
-
Starting system: Electric
-
Fuel tank capacity: 15 gallons
-
Low oil protection: Standard
-
Running time (full load): 9 hours
-
Running time (half load): 14.5 hours
-
Hour meter: Included
-

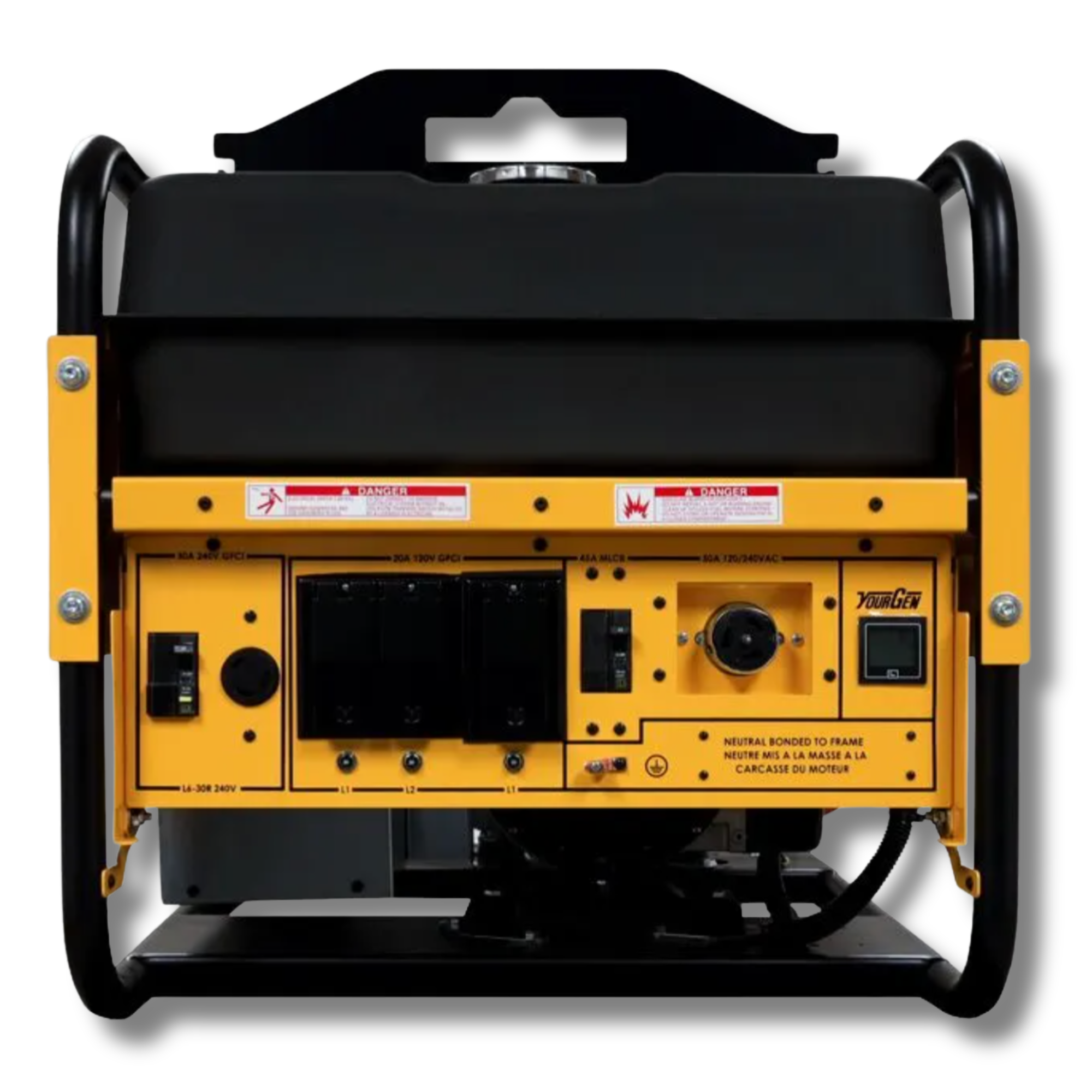

Receptacles:
• 120 V: 4 × 20 A NEMA 5-20 GFCI
• 120 V: 1 × 20 A locking GFCI NEMA L5-20
• 240 V: 1 × 30 A locking NEMA L6-30
• 120/240 V: 1 × 60 A NEMA 14-60
-
Dimensions (assembled): 39.5 in × 26.5 in × 26 in
-
Shipping weight: 440 lbs
-
Warranty: 2 years generator / 3 years engine
-
Noise rating: 75 dBA at 7 meters
-
CSA approved: No
-
Country of origin: USA
How To
- Place generator on a level surface with adequate ventilation and clearance.
-
Fill the 15-gallon fuel tank with gasoline and check engine oil level.
-
Connect load devices to the correct receptacles.
-
Start the engine using the electric start system.
-
Allow the generator to stabilize before applying load.
-
When finished, disconnect all loads, switch off engine, and allow unit to cool.
FAQs
Q: What is the maximum power rating of the WL12000HE?
A: It has a maximum power rating of 12,000 watts.
Q: What engine powers this generator?
A: It is powered by a Honda GX630 OHV V-twin engine.
Q: What is the shipping weight of this unit?
A: The shipping weight is 440 lbs.
Q: What are the unit’s dimensions?
A: The assembled dimensions are 39.5 × 26.5 × 26 inches.
Q: How long does it run at half load?
A: It runs up to 14.5 hours at half load.
