Price: $7,093.20
Item #168-50PTOC-3
Write a review!
Description

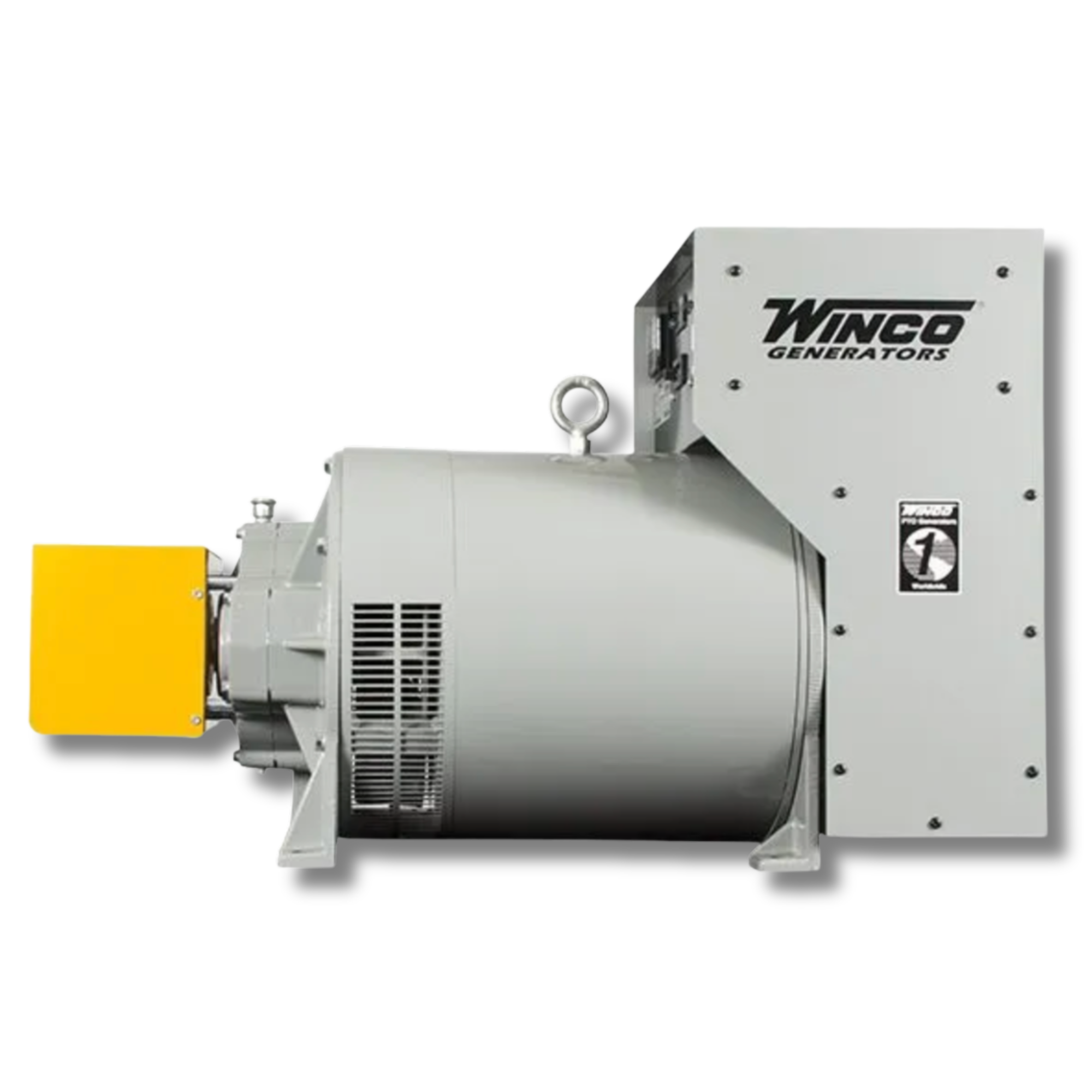

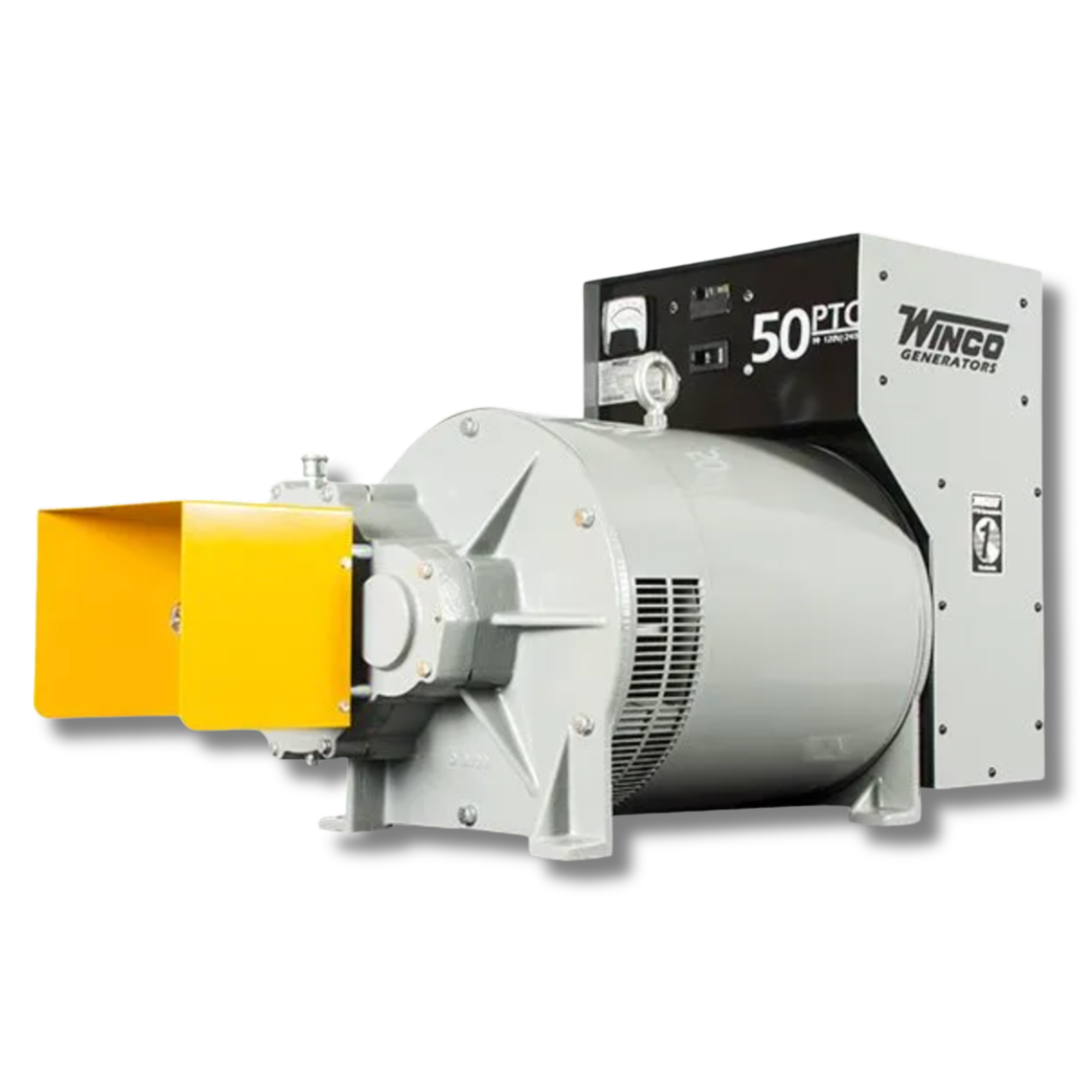

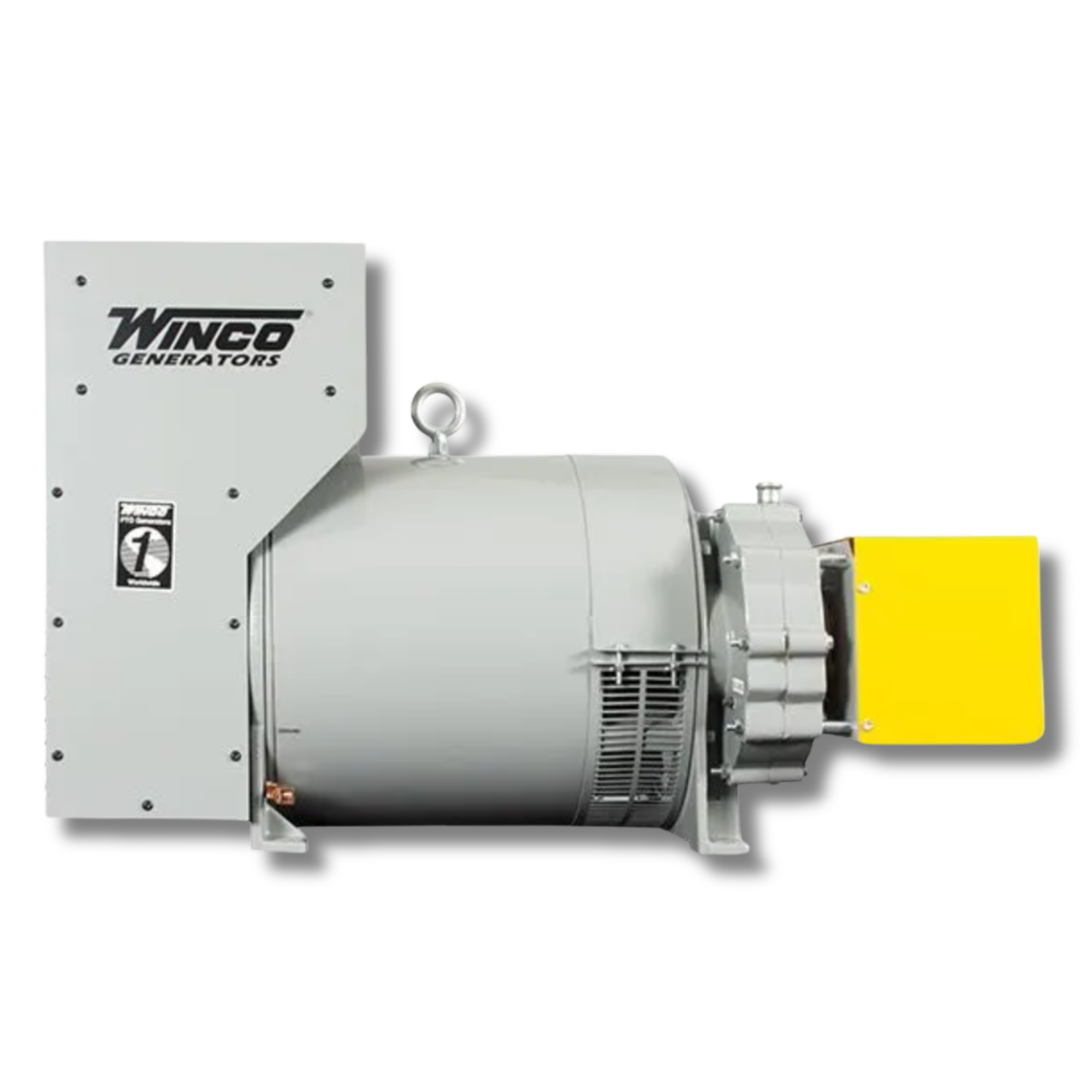

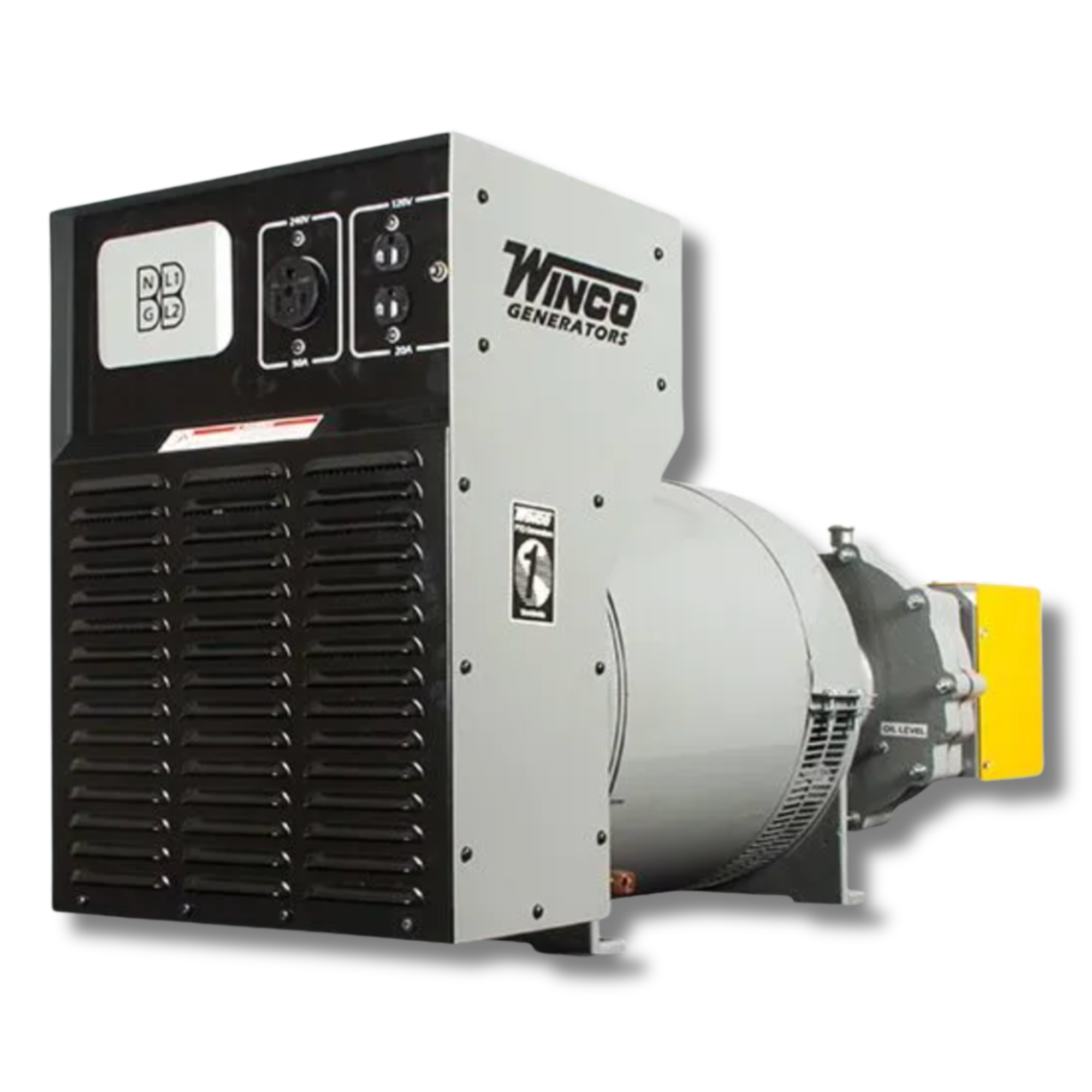

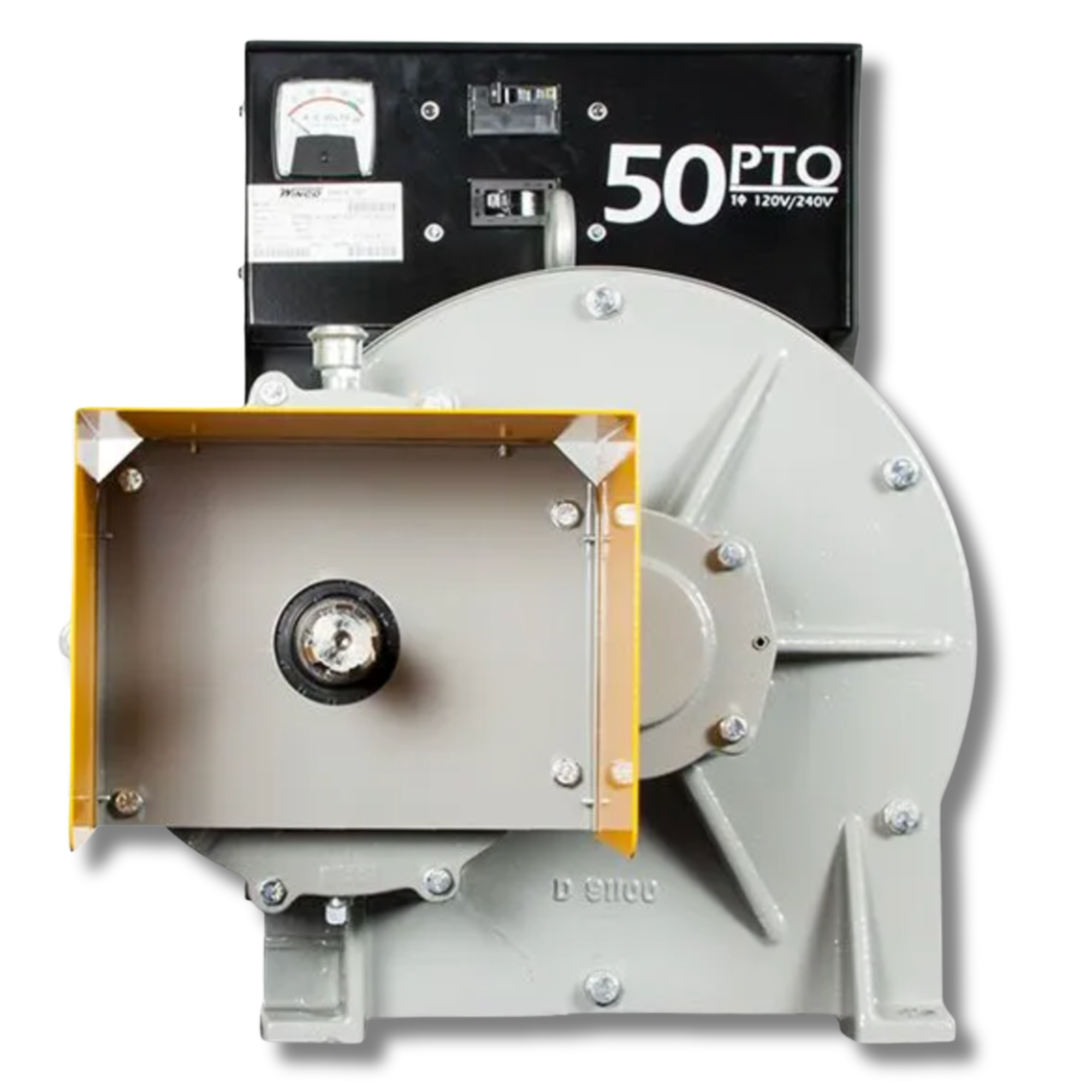

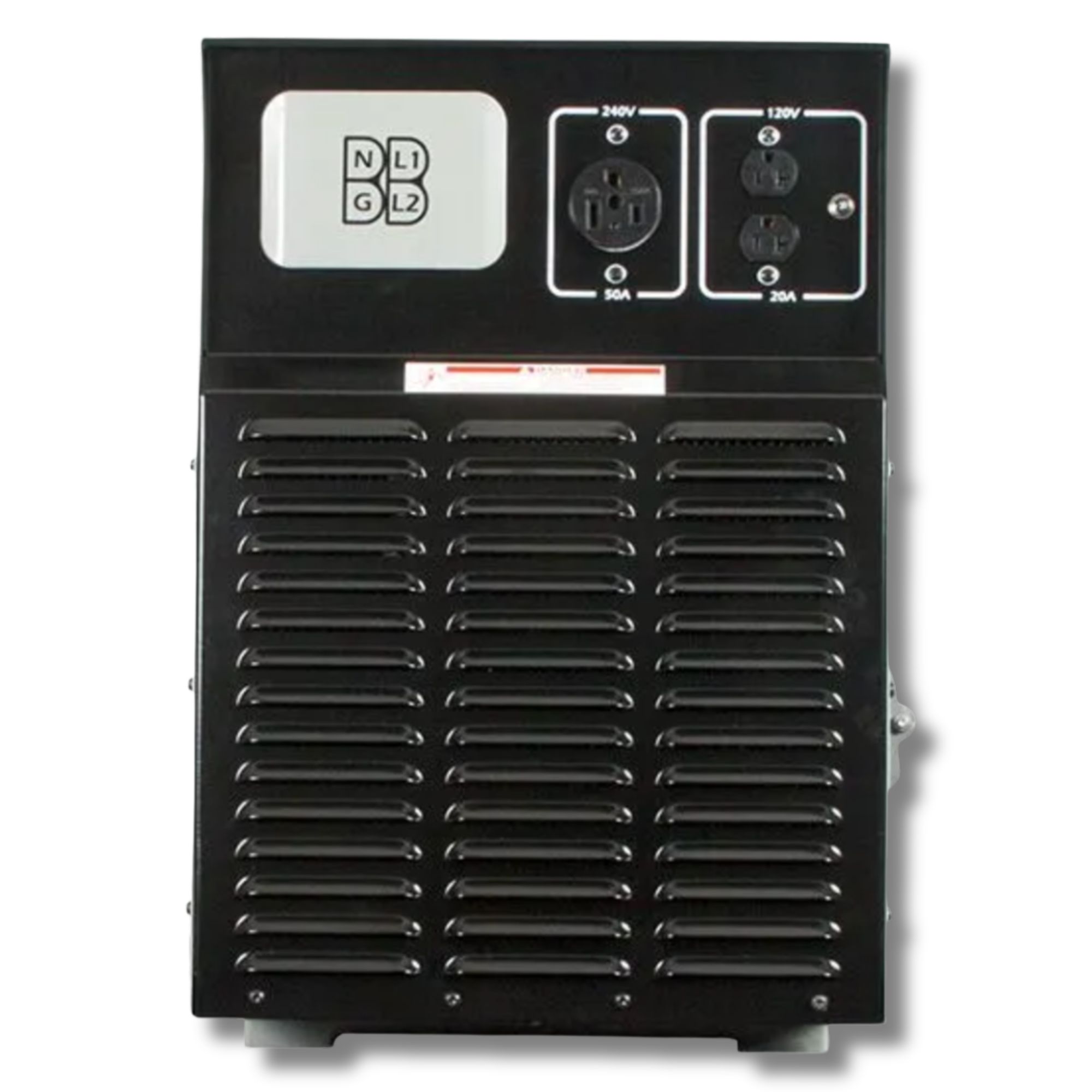

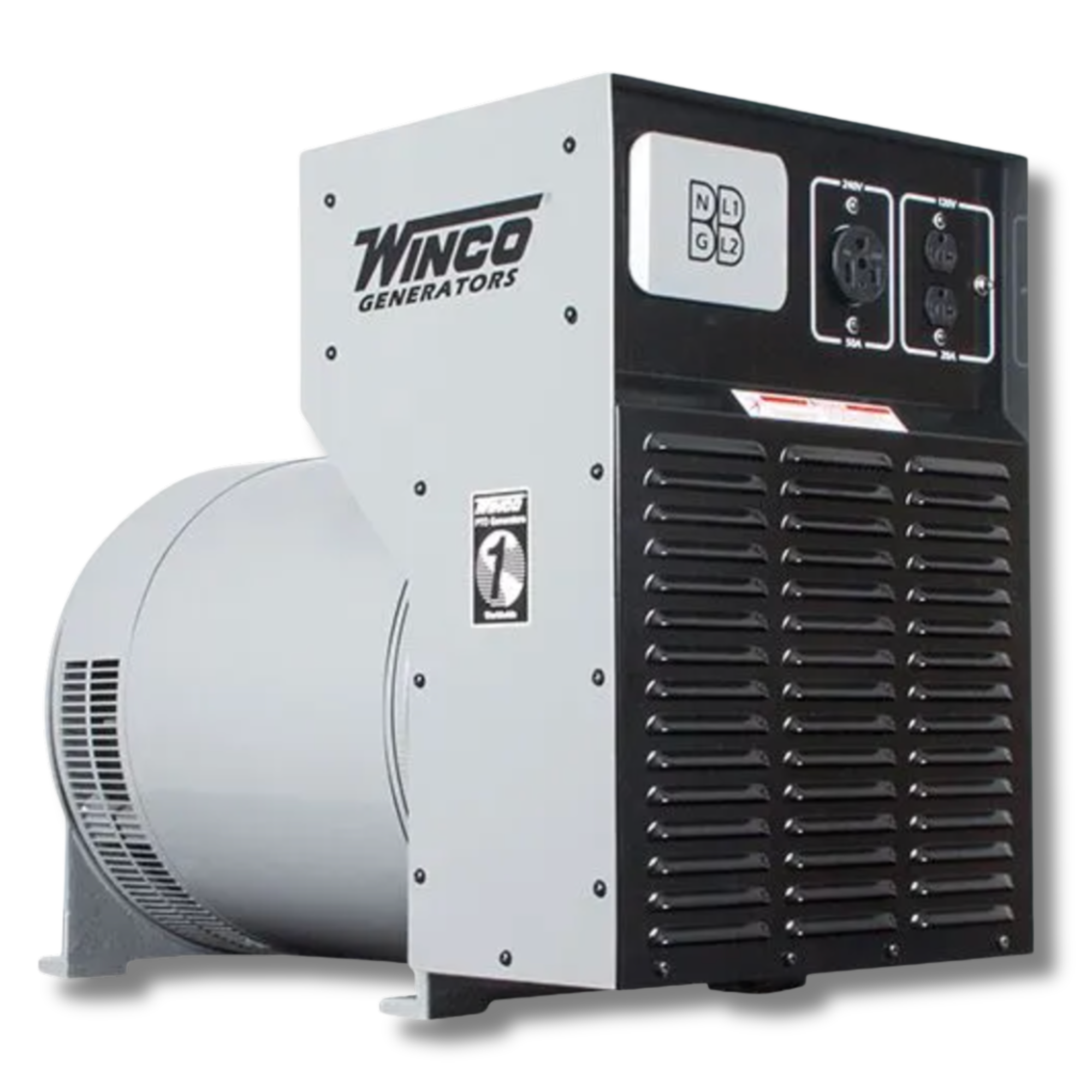

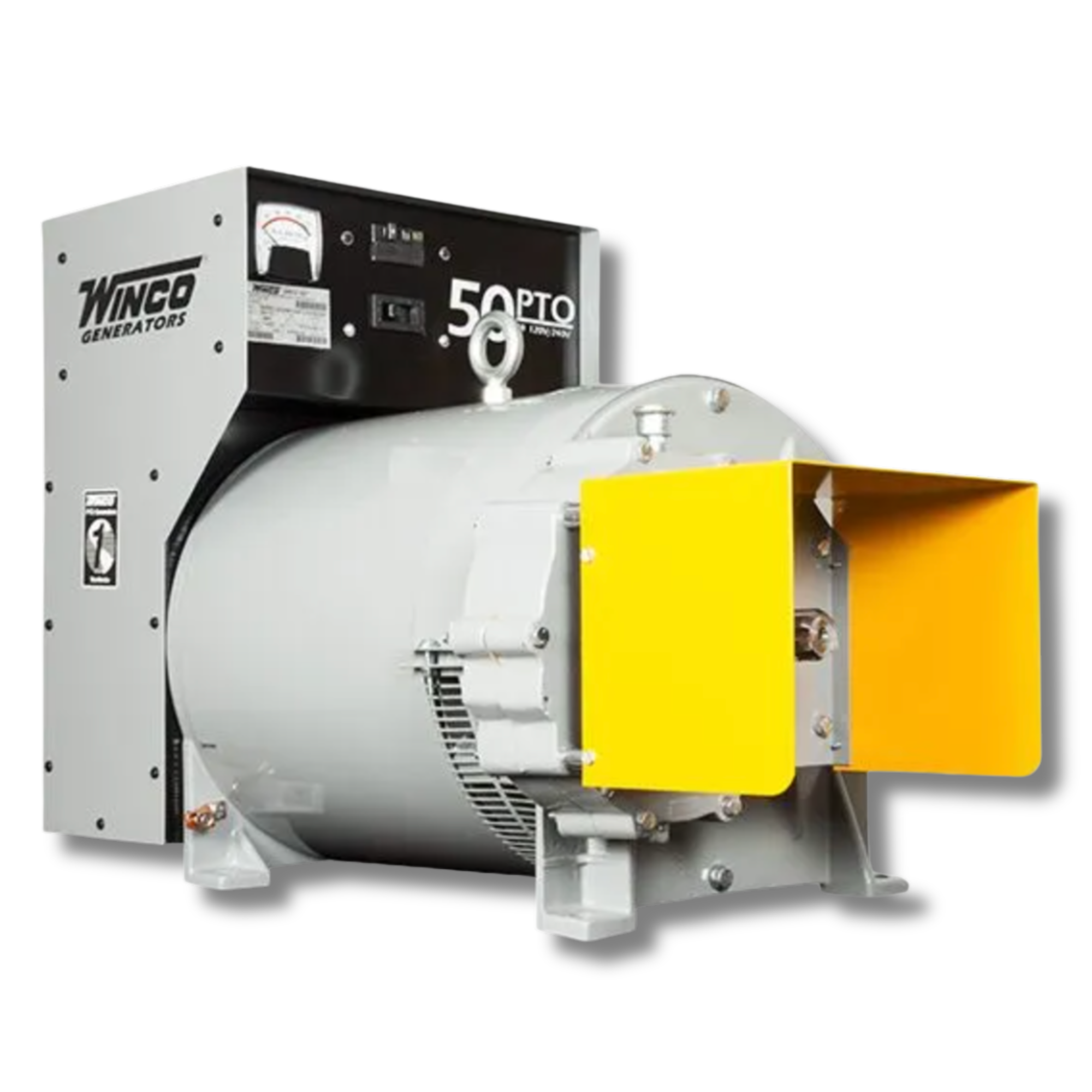

The Winco 61211-040 50PTOC is a high-capacity PTO-driven generator rated for continuous 50,000 W output at 120/240 V single-phase. Designed for agricultural or industrial tractor use, it operates at 540 RPM input, with a cast-iron gearcase and low total harmonic distortion for clean power delivery. Each unit is fully load tested before shipping.
Key Features
-
50,000 W continuous output
-
120/240 V single-phase output
-
540 RPM PTO input speed requirement
-
Cast-iron gearcase with helical gearing
-
Low total harmonic distortion (≤ 5 %)
-
Protective PTO shield and premium circuit breakers
-
3-inch analog voltmeter for monitoring
Specifications
- SKU: 61211-040
-
Model: 50PTOC PTO Generator
-
Running (continuous) watts: 50,000 W
-
Running current: 208 A @ 240 V
-
Voltage: 120/240 V, single-phase
-
PTO input speed: 540 RPM
-
Required tractor PTO horsepower: 100 HP
-
Gearcase: cast iron, helical gearing
-
Voltage regulation: capacitor-based
-
Total harmonic distortion: ≤ 5 %
-
Dimensions (assembled): 39 in × 20 in × 21 in
-
Net weight: 610 lbs
-
Circuit protection: premium main breaker and branch circuit breakers
-
Safety features: PTO drive shield, voltmeter for real-time monitoring
-
Testing: 100 % factory load tested
How To
- Position the generator near the tractor’s PTO shaft, ensuring alignment.
-
Secure the unit to a stable base or mount.
-
Attach a compatible PTO drive shaft (1-3/8 in 6-spline) between tractor and generator.
-
Ensure the PTO protective shield is in place and locked.
-
Run the tractor engine so its PTO output is 540 RPM.
-
Monitor the voltmeter to confirm proper voltage before applying load.
-
When done, remove load first, then disengage PTO, slow tractor, and disconnect the shaft.
FAQs
Q: What continuous power does 50PTOC deliver?
A: It provides 50,000 W of continuous output.
Q: What PTO speed is required?
A: It is designed for a 540 RPM PTO input.
Q: What are its dimensions and weight?
A: The unit measures 39 in × 20 in × 21 in and weighs 610 lbs.
Q: What voltage output does it supply?
A: It supplies 120/240 V single-phase output.
Q: What kind of protection or monitoring is included?
A: It includes premium breakers, a built-in 3 in voltmeter, and a protective PTO shield.
