TieDown L16 Commercial Roof Anchor

Specifications:

This fall arrest anchor is for single user in fall arrest or restraint, as part of an HLL system or for window washing tie-off. Do not connect more than one worker to an anchor. For use on a low slopped roof (4/12 pitch or less) unless otherwise specified by the manufacturer. A horizontal lifeline may be used with the Tie Down CRA's when designed by a qualified person. No more than two workers may tie off to a horizontal lifeline that is connected to a Tie Down CRA.

Compliance:
When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012 standards for fall protection.

Strength Rating:
Ultimate Strength Capacity : 5,000 lbs (any direction)
Capacity: 420 lbs (Worker with Tools)

Specs-

• Riser: 12"
• SCH: 40
• O.D.: 3"
• Base Thickness: 3/8"

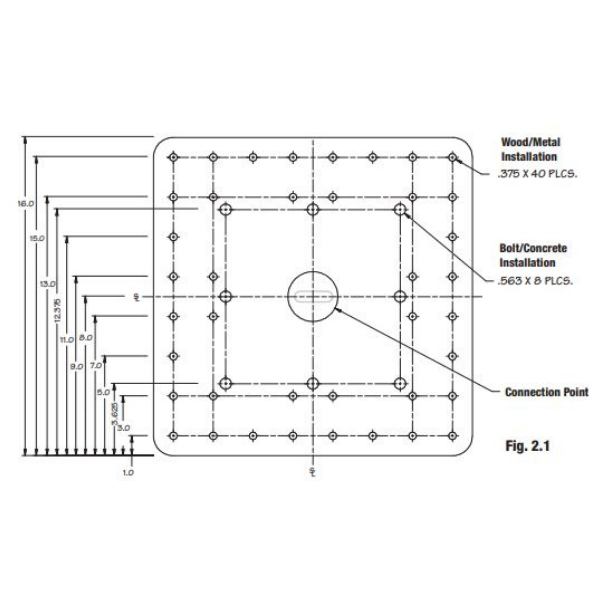

• Base Size: 16" x 16"
• Attach Type: Screw/Bolt on
• Number of Holes/Fasteners: 40 Wood/Metal | 8 Concrete
• Weight: 33 Lbs
