Tie Down 70736 ZipRail Complete Kit - Rooftop Fall Protection System, 355 ft.

The Tie Down 70736 ZipRail Complete Kit delivers 355 ft of comprehensive rooftop guardrail fall protection in one packaged solution. It includes rail segments, stanchions, compression brackets, corner assemblies, locking pins, and a stackable container for transport and deployment. The kit is designed for tool-free assembly, compatible with parapet walls or flat roof edges, and meets OSHA guardrail requirements.

Key Features

• Complete guardrail kit with 355 ft of coverage
• Tool-free installation using pop pins and stanchions
• Compatible for mounting on parapet walls or flat roof edges
• Includes forklift pockets and hoisting rings for rooftop delivery
• Meets OSHA 1910.29 and 1926.502 guardrail compliance

• SKU: 70736
• Product name: ZipRail Complete Kit (355 ft)
• Coverage length: 355 ft
• Height: 38.00 in
• Length (container): 122.00 in
• Width (container): 34.00 in
• Weight (kit): 2,069 lb
• Compliance: OSHA 1910.29, 1926.502
• Warranty: 1 Year Limited

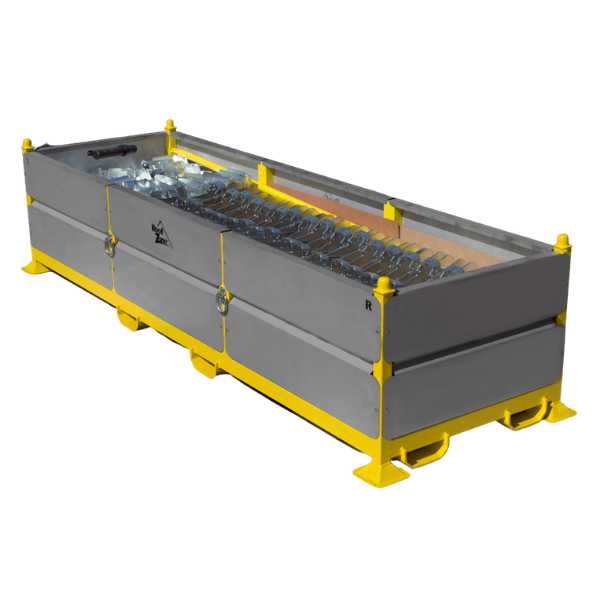

• Components included: 62 × 10 ft zip rails (painted yellow), 8 × adjustable 5–8 ft rails (zinc finish), 4 × adjustable 32–48 in rails (zinc finish), 36 × zip rail stanchions (painted yellow), 36 × compression bracket & gravel stop, 12 × corner bracket assemblies, 36 × safety locking pins, 1 × stackable container

• Position the kit container at the roof edge and unload components.
• Mount compression brackets to the parapet wall or use gravel stop brackets on flat roof edges.
• Insert stanchions into brackets and use pop pins to secure zip rail segments.
• Use corner bracket assemblies at directional changes.
• Place locking pins at every rail/stanchion connection.
• Use forklift pockets or hoist rings to lift sections as needed.
• Inspect all connections before allowing worker access.
• Disassemble in reverse order and pack components back into the container.

Q: How much guardrail coverage does kit 70736 offer?
A: It provides 355 ft of guardrail coverage.

Q: Do I need tools to assemble it?
A: No — the system uses pop pin connections and requires no hand tools.

Q: Can it mount to parapet walls or flat roof edges?
A: Yes, it supports both parapet wall mounting and flat roof edge mounting.

Q: What is the weight of the full kit?
A: About 2,069 lb.

Q: What safety standards does it meet?
A: It meets OSHA guardrail requirements under 1910.29 and 1926.502.
