The standard finish is white textured powder coat paint

* Free Freight Terms Do Not Apply *

Best Price Guaranteed
Price: $784.30
    Item #JLI-RHDG-1WT
    Write a review!
    Quantity:

    Description

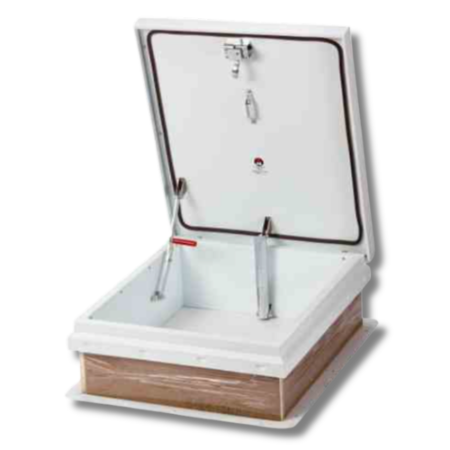

    The RHDG roof hatch diamond galvannealed series is designed for safety and easy installation and roof access. The sizes provided above are designed for ladder access. Diamond Grip embossed counter flashing design quickly secures the roof membrane and backing rod without sharp tools or edges. Manufactured from 14 gauge galvannealed steel formed, welded cover with 22 gauge liner, tested to support a live load of 40psf. Constructed with weather resistant gasketing, these units feature long life, low maintenance and ease of operation. Springs are counterbalanced to comply with OSHA 1023 fall protection for single hand operation of latches to a ladder.

    The Diamond Series Roof Hatch is designed for safe and easy roof access with higher insulation values to reduce building energy costs.

    Features

    • The embossed counterflashing design – Diamond Grip™ – quickly secures the roof membrane and backing rod without tools or sharp edges
    • Springs are counterbalanced to comply with OSHA 1023 fall protection regulations for single-hand operation of latches from a ladder
    • Durable factory-applied powder coat finish and corrosion-resistant hardware provide maximum protection

    Product Details

    • Curb : Single wall curb and counterflashing with Diamond Grip to secure roof membrane without tools. 14 gauge galvannealed steel, white textured powder coat paint.
    • Cover : Formed and welded with liner, tested to support a live load of 40psf. 14 gauge with 22 gauge liner galvannealed steel, white textured powder coat paint.
    • Gasket : Continuous, weatherproof EPDM sponge rubber adhesive-backed seal.
    • Insulation : 1” polyisocyanurate in curb and cover with thermal resistance R-6.
    • Spring : Counterbalanced compression springs contained in clear zinc-plated steel cylinders.
    • Latch : Clear zinc-plated steel slam latch with inside and outside handles and padlock hasps. Tested to 50psf wind uplift.
    • Hold Open Arm : Clear zinc-plated automatic locking hold open arm with red vinyl grip for one handed door operation.
    • Hinge : Heavy duty clear zinc-plated steel pintle hinge.
    • Clear Opening : 25" x 24"

    Specifications

    • Weight: 138lbs
    • Reduced Energy Costs Due to R-6 Insulation in Curb and Lid
    • Easier, Faster to Install Flashing System
    • 17% lower shipping weight than RHG
    • 14 Gauge Galvanized Steel
    • 12" high curb and 3-5/8" wide flange for securing to roof deck
    • Cover includes a 14 gauge aluminum exterio
    • 22 gauge aluminum liner with a TPE draft seal gasket door seal
    • Insulation 1" fiberboard insulation surrounding the base

    Reviews (0) • Write a review!

    This product has no reviews yet. Write a review!
