Sale!
- Features a high-strength 3/16-inch galvanized steel cable lifeline designed for maximum abrasion resistance and long-term durability in rugged overhead fall-arrest applications
- Engineered with a load-indicating swivel snap hook that provides a clear visual signal if a fall event has occurred, ensuring the unit is removed from service for inspection
- Constructed with a durable glass-filled nylon housing to protect internal braking components from heavy job-site impacts and harsh environmental conditions
- Includes a double-locking twist-lock alloy steel anchorage carabiner for a secure, high-strength connection to overhead anchorage points
- Classified as an ANSI Z359.14-2021 Class 1 SRL, optimized for standard overhead use where the anchorage is located above the user’s dorsal D-ring
- Designed to limit average arrest forces to 900 lbs with a maximum arrest distance of 42 inches, providing reliable deceleration and safety performance
- Fully compliant with OSHA 1926.502 and 1910.66 regulations, supporting a standard user capacity of 130 to 310 lbs
Price: $485.00
Item #FALLTECH-727630C
Write a review!
Description

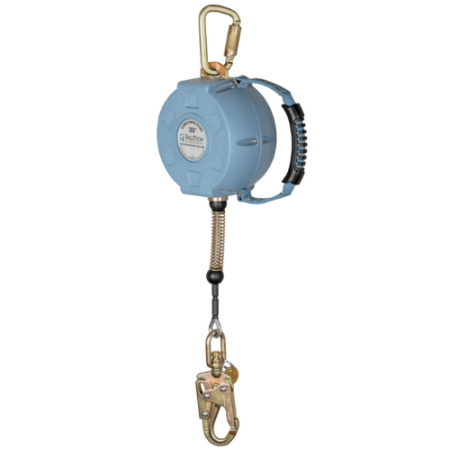

This self-retracting lifeline is designed for overhead fall-arrest applications with a 30-foot galvanized steel cable lifeline (3/16″), a load-indicating swivel snap hook, and a durable glass-filled nylon housing. It includes a double-locking twist-lock anchorage carabiner and meets the requirements of ANSI Z359.14-2021 for Class 1 SRLs.
Key features:
-
3/16″ galvanized steel cable lifeline for enhanced durability
-
Load-indicating swivel snap hook provides visible fall-event indication
-
Glass-filled nylon housing protects internal components from job-site impact
-
Double-locking twist-lock anchorage carabiner for secure connection
Specifications
- SKU: 727630C
-
Cable: 3/16″ galvanized steel; minimum static strength 3,600 lb
-
Lifeline connector: plated alloy steel; minimum static strength 5,000 lb with 3,600 lb gate strength
-
Anchorage connector: plated alloy steel; minimum static strength 5,000 lb with 3,600 lb gate strength
-
Static strength: minimum 3,600 lb
-
ANSI SRL Class/Type: Class 1 SRL
-
Average arrest force: 900 lb
-
Maximum arrest force: 1,800 lb
-
Maximum arrest distance: 42″
-
ANSI user capacity: 130 to 310 lb maximum
-
OSHA user capacity: 130 to 310 lb maximum
-
Compliance: ANSI Z359.14-2021; OSHA 1926.502 / 1910.66
FAQs
Q: What defines this SRL as Class 1 and when should it be used?
A: Class 1 indicates it is designed for overhead anchorage above the user’s dorsal D-ring in typical construction fall-arrest scenarios; it should be selected for environments without leading-edge hazard.
Q: Why is a galvanized steel cable chosen for the lifeline?
A: The 3/16″ galvanized steel cable offers strong resistance to abrasion and cutting, making it suitable for rugged job‐site conditions and overhead fall‐arrest applications.
Q: What does the load-indicating swivel snap hook allow the user to do?
A: It provides a visible indication that a fall event has occurred and the unit must be removed from service for inspection or replacement.
Q: What pre-use inspection steps should I follow?
A: Confirm the cable is free of broken strands, kinks or damage; ensure the housing and carabiner show no cracks or deformation; verify the snap hook gate and carabiner locking mechanism function correctly; check that the ratings remain legible.
