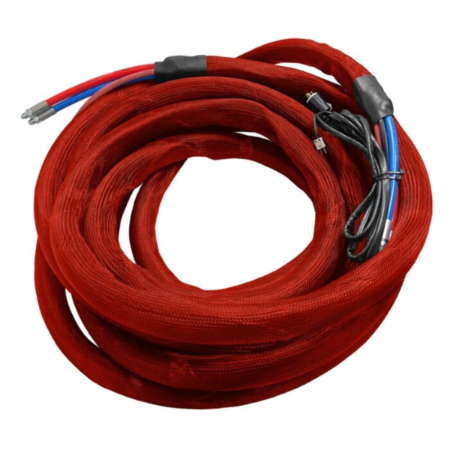

Amped Equipment - 50' PJR Heated Hose Extension - 3-Bundle, A+B w/ Air Line

This extension adds 50 feet of heated hose in a 3-bundle format (A side, B side, and air line) ready to plug into an existing setup. All three lines are protected with a red, scuff-resistant jacket. It is designed for use with PJR heated hose systems to increase jobsite reach.

Key features:

• 50′ heated extension for A, B, and air lines
• Red scuff-resistant cover
• Ready-to-use plug-in extension
• Maintains compatibility with PJR systems
• Designed for two-part poly-iso low-rise adhesive spray applications

• Hose bundle: 3 lines (A, B, and air line)
• Length: 50 feet
• Jacket: Red scuff-resistant
• Temperature operating range: 80° – 120° F
• Voltage: 120V
• Pressure rating: 2,000 psi ([turn0search3] )
• Hose internal diameter: 3/8″ for A + B lines
• Made in U.S.A.
• Weight: 25 lbs
• Package dimensions: 28 in × 30 in × 12 in

• Power off your plural-component system and relieve all system pressure. Ensure all hoses are cool and disconnected before adding the extension.
• Lay out the existing heated hose A + B + air-line bundle flat and flatly uncoil the extension hose bundle alongside it in the correct footprint. Match the color coded jackets (e.g., red scuff guard) and confirm correct orientation of A-side, B-side and air line.
• Connect the extension’s three lines into the matching ends of the starter bundle using the manufacturer-approved coupling/joint kit. Tighten fittings, ensure the thermocouple or temperature sensor harness is connected if required, and verify continuity of the heating circuit.
• Reconnect power/volt supply to the heating control module and set the target fluid temperature. Pre-heat the entire bundle (starter + extension) until the A and B fluid lines reach the specified operating temperature range (e.g., 80 °F-120 °F) before beginning operations.
• After job completion: Power down heating, relieve pressure, bleed or purge the system as per your machine’s instructions, inspect the extension bundle for damage (scuff guard, fittings, insulation), coil loosely for storage and keep it off direct ground contact to prolong lifespan.

Q: What is the primary benefit of using a heated hose extension on the PJR system?
A: It allows you to increase job-site reach by adding 50 ft of heated hose to your existing A + B + air line bundle, helping maintain material temperature and spray quality.

Q: What are the diameter and pressure specifications for the extension bundle?
A: The A and B hoses are 3/8″ ID and rated for approximately 2,000 psi, per the manufacturer’s specs.

Q: How does the extension maintain compatibility with the existing heated hose system?
A: It uses the same color-coded scuff guard jacket, full insulation and matching connectors so you simply plug it into the current starter bundle without replacing the entire hose.

Q: What operating temperature range should be achieved for the heated hose bundle to function properly?
A: The hose is designed to maintain fluid temperatures roughly in the 80 °F to 120 °F range during two-part adhesive applications, depending on conditions.

Q: What maintenance or inspection should be done on the extension hose bundle?
A: Check the scuff guard jacket for abrasion or cuts, inspect fittings for wear or leaks, ensure the temperature sensor/harness is intact, and store the bundle coiled in a dry location off the ground to protect insulation.
