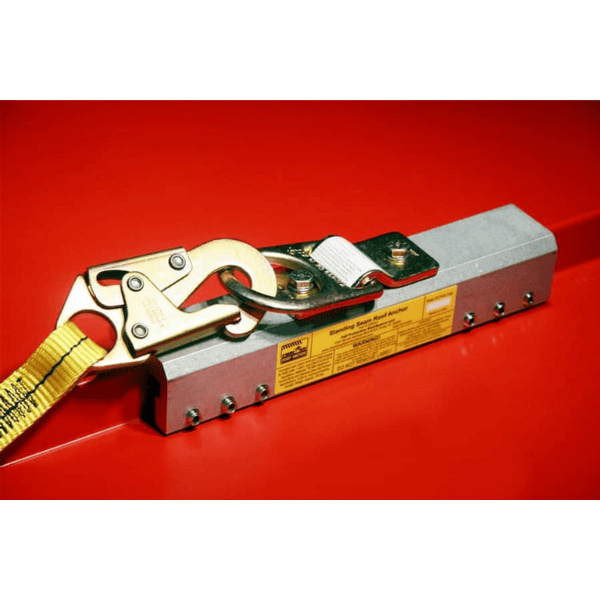

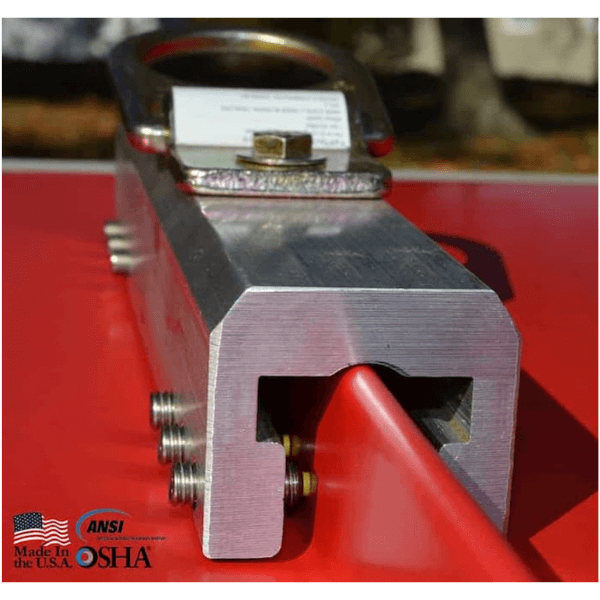

The Standing Seam Roof Anchor(SSRA1) is a revolutionary product allowing homeowners, building owners, and contractors to work safely on standing seam roofs without penetrating the panels. Engineered to revolutionize fall protection anchorage attachment on Standing Seam Roofs! The patented, non-penetrating design of this life-saving device is unlike anything currently available. It consists of a solid 6061-T6 aluminum body with 12 stainless steel set screws and 12 nylon tipped stainless steel set screws. The standard assembly also includes a 5,000 lbs certified D-ring for single man attachment. It arrives ready to use as a single seam, single user anchor.
The SSRA1 was recently subjected to Ultimate Failure testing at an independent ISO 17025/ANSI Z359.18 certified materials testing facility. The results far exceeded our expectations and our competitor’s strength. The maximum testing protocol for OSHA and ANSI is 5,000 lbs, however the SSRA1 was subjected to 14,500 lbs of load. The test was concluded when the Grade 8 top bolts sheared leaving the aluminum anchor body completely unharmed or bent. This incredible strength is due to the patented structural design of the anchor body. This puts the SSRA1 in a class of it’s own in the industry!
The SSRA1 has several distinct advantages for homeowners, building owners, and contractors:
- Only 4.5 lbs!World's lightest OSHA/ANSI 5,000 lbs certified anchor. Installs in minutes with basic hand tools. Can be used for the temporary or permanent attachment.
- Patented, universal fit design works on over 500 Standing Seam Panel Profiles with no reassembly required! Fits t-seams, bulb seams, SnapLok, single lok, double lok, MR-24, etc. No other anchor fits as many profiles. A list of compatible profiles can be found on the Panel Compatibility Page.
- ANSI ASTM B-117 Salt Spray tested, non-corrosive aluminum and stainless steel components. Can be powder-coated to color match roofs for permanent installations.
- Made in USA with a Lifetime Life-Saving Warranty.
- Clean, low profile attachment to the seam minimizes tripping hazards and is less obtrusive on permanent attachments.
- OSHA/ANSI tested to 5,000 lbs in ALL directions of pull. Workers can access both sides of the roof without having to reposition the anchor. The test reports can be reviewed on the Test Report Page. (Mfg Page)
- The only certified component system for mounting just about anything to a standing seam roof. The interchangeable mount allows for the attachment of devices from various fall protection manufacturers. Can be used for attachment of roof jacks, walk boards, SRLs, horizontal lifelines, ladder anchoring, etc.

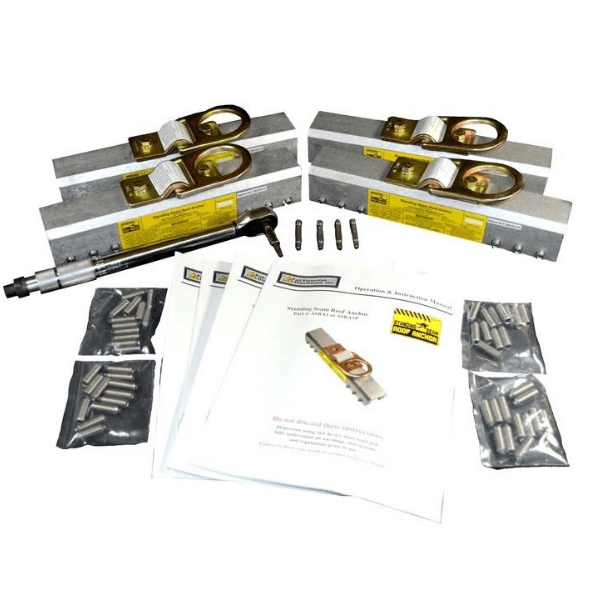

What's Included:
(4) 6061-T6 Aluminum Body- patented universal fit design
(4) 5,000 lbs certified D-Ring (Installed)
(4) packs of 12 stainless steel, Cupped Tip set screws (Installed)
(4) packs of 12 stainless steel, Nylon Tip set screws
(4) Owner's Manuals
(4) 3/16 Hex Bits
(1)Torque Wrench with 3/16" socket bit
Backed with a Lifetime Warranty!
* For short term anchor attachment, we recommend using the optional Nylon Tipped Set Screws for less chance of seam scratching.
