Price: $245.95
Item #TDE-13864
Write a review!
Description

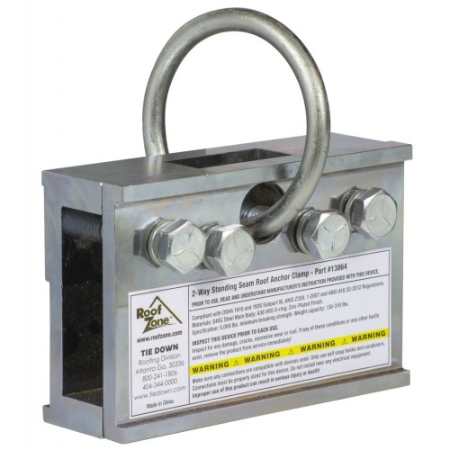

The Tie Down 13864 Standing Seam Roof Anchor is a non-penetrating fall protection anchor designed to clamp directly onto standing seam roofs without penetrating the roof surface. It supports a rated strength of 5,000 lb and accommodates worker loads from 130 to 310 lb. The anchor is reusable, made of zinc electroplate steel, and compatible with MR-24, VSR, and similar seam profiles.
Key Features
-
Non-penetrating clamp design mounts on standing seam profiles
-
Reusable design useful across multiple jobs
-
Rated 5,000 lb minimum break strength
-
Supports worker loads 130 to 310 lb
-
Fits MR-24, VSR, and other similar seam types
Specifications
- SKU: 13864
-
Product type: Standing Seam Roof Anchor
-
Installation: non-penetrating clamp
-
Material: steel, zinc electroplate finish
-
Color: silver
-
Strength rating: 5,000 lb
-
Worker load capacity: 130-310 lb
-
Dimensions: height 4.50 in, length 6.50 in, width 4.50 in
-
Weight: 7.12 lb
-
Clamp capacity: fits seams up to 1 in
-
Bolts: two 1/2-13 × 2-1/2 inch Grade 5 bolts with 1/2 inch lock washers
-
O-ring diameter: 3.75 in galvanized
-
Base thickness: 3/8 in
-
Division: Roofing / Fall Protection
-
Warranty: 1-year limited
-
Country of origin: China
-
Compliance: meets applicable OSHA anchorage standards
How To
- Identify a suitable standing seam location at least 4 ft from roof edges and ensure the seam is fully seamed.
-
Position the anchor’s clamp over the seam, aligning jaws with roof seam flanges.
-
Tighten both supplied bolts until clamp securely engages seam without shifting.
-
Verify clamp is secure and will not slip before attaching lifeline/harness hardware.
-
Use the anchor for a single tie-off—connect lanyard, lifeline, or shock absorber device only to the anchor point.
-
After use, inspect anchor bolts and components; loosen clamp and remove when no longer needed.
FAQs
Q: Is the 13864 roof anchor reusable?
A: Yes, it is designed for repeated use across multiple projects.
Q: Does it require roof penetration for installation?
A: No, the 13864 anchor clamps directly onto standing seams without penetrating the roof.
Q: What is the strength rating of this anchor?
A: The anchor is rated to 5,000 lb minimum break strength.
Q: What range of worker loads does it support?
A: It supports worker loads from 130 to 310 lb (including tools).
Q: Which seam profiles does it fit?
A: It fits MR-24, VSR, and other similar standing seam roof profiles up to 1 in.
