FallTech 772100 - 4-Person Temporary Horizontal Lifeline System, 100'

The FallTech 772100 100′ 4-Person Temporary Rope Horizontal Lifeline System is engineered for mobile, temporary anchorage across open spans for up to four workers. The system features a 5/8″ double-braid polyester rope lifeline with steel thimble and stitched end-termination, a line tensioner assembly with integral energy absorber and anchorage-end carabiner, and all hardware needed for install including pass-through anchor straps and connecting rings. It is packaged in a gear-bag for portability and redeployment.

Key features:

• High-strength 5/8″ double-braid polyester rope lifeline with steel thimble and stitched termination
• Line tensioner assembly with integral energy absorber and anchorage-end carabiner for simplified setup
• Includes 4 connecting rings, 2 heavy-duty pass-through anchor straps, additional thimble-end carabiner, and 18″ gear bag for storage
• Designed for use by up to four users sharing the 100′ span

• SKU: 772100
• Product type: 4-Person Temporary Horizontal Lifeline System, 100′ span
• Rope: 5/8″ double-braid polyester rope; minimum static strength 6,000 lb
• Connecting rings: Plated alloy steel; minimum static strength 5,000 lb
• Carabiners: Plated alloy steel; minimum static strength 5,000 lb with 3,600 lb gate strength
• Sling anchors: Polyester webbing with plated alloy steel D-rings; minimum static strength 5,000 lb
• Tensioner: Aluminum alloy and stainless steel; minimum static strength 6,000 lb

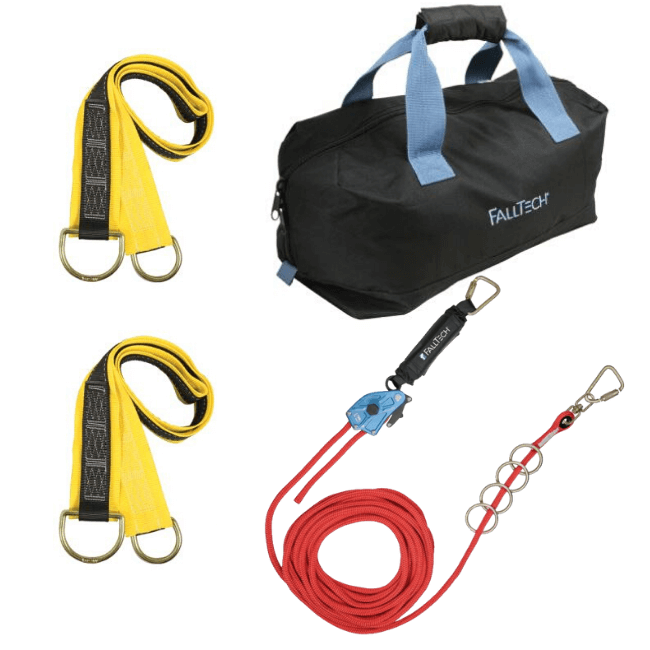

• Included components: Rope lifeline, line tensioner with carabiner, 4 connecting rings, 2 pass-through anchor straps, thimble-end carabiner, 18″ gear bag
• User capacity: Up to 4 users
• Compliance: Meets OSHA 1926.502

Q: Can four workers be connected to the 772100 system at once?
A: Yes — the system is engineered to support up to four users across the 100-foot span.

Q: What size and type of rope does the 772100 use for the lifeline?
A: It uses a 5/8″ double-braid polyester rope with steel thimble and stitched end-termination.

Q: What hardware comes included in the 772100 kit?
A: It includes the rope lifeline, a line tensioner with anchorage-end carabiner, 4 connecting rings, 2 heavy-duty pass-through anchor straps, an additional thimble-end carabiner, and an 18″ gear bag for storage and transport.

Q: Is the 772100 suitable for ultra-long spans or permanent installation?
A: This system is designed for temporary, single-span use and portability; for permanent or multi-span horizontal lifeline systems you should refer to the manufacturer’s guidance.
