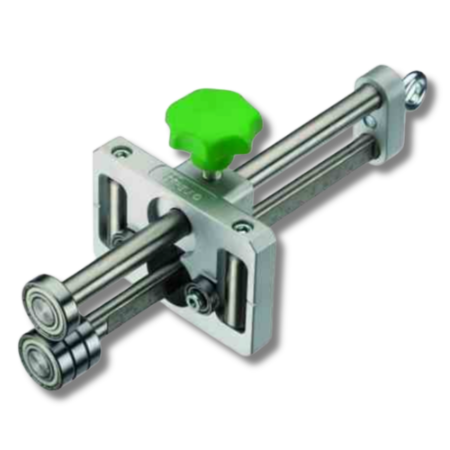

Freund 91602000 - Standard Edge Roller

The Freund #91602000 Standard Edge Roller is a dependable, easy-handling sheet metal bending tool designed for forming clean, accurate edge bends directly on the job site. Built for everyday use, it delivers smooth rolling action and consistent results, making it a trusted choice for roofers, installers, and metal fabricators working with flashing, trim, and light-gauge roofing metals. Its lightweight, ergonomic design provides excellent control while maintaining the durability and precision Freund tools are known for.

Key Features

• Smooth, consistent bending performance
  Engineered to produce clean, uniform bends along panel edges, flashing, and trim with minimal effort.
• Lightweight, ergonomic design
  Easy to handle on roofs or in the shop, allowing for precise control during long bends or delicate detail work.
• Adjustable bending height
  Allows you to create various upstand heights depending on your project’s needs—ideal for drip edges, hems, and flashing returns.
• Durable construction
  Built with high-quality materials for long-lasting reliability, even under frequent job-site use.
• Versatile metal compatibility
  Suitable for aluminum, zinc, copper, steel, and stainless steel within typical light sheet-gauge thicknesses.
• Ideal for on-site work
  Eliminates the need to return to a brake for smaller or medium bends—form edges right where you’re working.

CAUTION - Maximum Sheet Strength/Thickness:

• Zinc, Aluminum = 1 mm (0.04 in.)
• Copper = 0.8 mm (0.03 in.)
• Steel = 0.7 mm (0.028 in.)
• Stainless Steel, rust-proof = 0.5 mm (0.02 in)

Weight: Approx. 1.8–2.0 kg (4.0–4.4 lb)

Dimensions (Approx.):

• Length: ~280 mm (11")
• Width: ~140 mm (5.5")
• Height: ~120 mm (4.7")

Material:

• Body: High-quality steel and aluminum construction
• Rollers: Precision-machined metal rollers
• Contact Surfaces: Rubberized protective pads
• Hardware: Hardened steel adjustment components

Bending Range:

• Upstand Height: Adjustable for a variety of drip edges, hems, and flashing bends
• Bend Angle: Up to 90° depending on material thickness and rigidity

Compatible Material Thickness:

• Aluminum & Zinc: up to approx. 1.0 mm
• Copper: up to approx. 0.8 mm
• Steel (mild): up to approx. 0.7 mm
• Stainless Steel: up to approx. 0.5 mm
• Typical working range: 0.3–1.0 mm

Roller System:

• Standard dual roller design for stable movement
• Ensures even pressure for smooth, consistent bends

Intended Use:

• Forming upstands, hems, drip edges, and other detail bends in sheet metal
• Ideal for on-site roofing work, flashing installation, and metal trim fabrication

Ergonomic Features:

• Lightweight and compact for rooftop mobility
• Comfortable grip for controlled bending and long-run work

Q: What is the Freund #91602000 Standard Edge Roller used for?
A: It’s used to form clean, consistent edge bends in sheet metal, making it ideal for flashing, drip edges, hems, and other roofing and trim details. Roofers and metalworkers use it to bend metal directly on the job site without needing a stationary brake.

Q: What types of metal can the Standard Edge Roller work with?
A: It can be used on aluminum, zinc, copper, steel, and stainless steel within light-gauge roofing thicknesses—typically between 0.3 mm and 1.0 mm, depending on the hardness of the material.

Q: Can the Standard Edge Roller bend metal up to a full 90 degrees?
A: Yes. When used properly and within the recommended material thickness range, it can bend sheet metal up to approximately 90°, allowing for crisp upstands and finished edges.

Q: Is the Standard Edge Roller safe for finished metal surfaces?
A: Yes—when used correctly. The tool features smooth guide rollers and protective contact surfaces designed to minimize marking or scratching. Keeping the tool clean and free of debris helps maintain surface protection.
