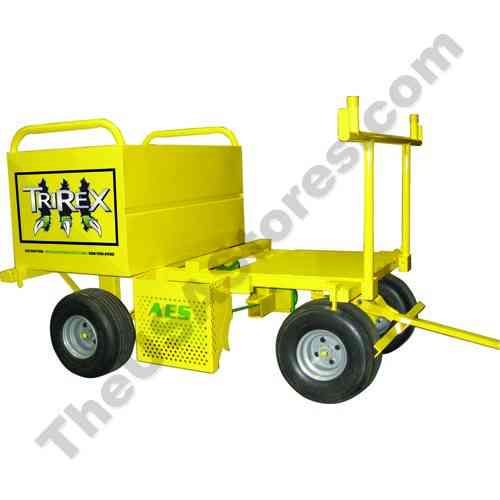

Fall Arrest rating for three workers and optional fall restraint for two*. With the new job box and material rack, you will see safe and productive increases for your leading edge work. Includes Flat-Free Tires, 16 cf Job Box (w/double door opening from the center) and a Material Rack. Additional 12 cf job box and Raptor Alert available as an option.
* With the optional Fall Restraint Tie-Off Rings, the TriRex accommodates a total of five workers.
- OSHA Compliant
- No Assembly Required
- No Counterweights
- No Loose Parts
- Useful On Every Job Site
- NEW: Positive-locking wheel locks
- NEW: Positive-locking front axle
- NEW: Streamlined frame
- NEW: Convenient lifting fork-pockets
- Standard Flat-Free Tires
- Engagement Claw Lock keeps the claw anchored if a fall occurs
Length: 74" (without handle attached), 113.5" (with handle attached)
Width: 56.5"
Height: 51"
Weight: 965 Pounds (Base Model)
Tires: Solid Polyurethane 18 x 8.5 x 8 flat free tires, needle bearings with grease zirks
Size of Platform: 23 3/4 x 29 3/4"
Height of Platform from Ground: 21-3/4"
Ground Clearance: 5-1/2"
Warranty: Manufacturers limited warranty covers any defect in workmanship or materials; One year from date of purchase
Standard Job Box Dimensions: 47 1/2" wide x 24" tall x 24" deep
Capacity: 16 cubic feet
Weight: 116 pounds
Description: 16 gauge solid steel construction, powder coated inside and out
Weight Carry Capacity of Trailer: 2000 lbs gross weight rating
Fall Protection Standards: 1926.502 (D)
Fall Arrest Anchor
Fall Arrest Capacity: Three Workers
The Raptor R1000 has been tested and approved for the following Substrates:
Built-Up Roofing (BUR) Membrane
Modified PVC Membranes
Thermoplastic Polyolefin (TPO) Membranes
EPDM Roofing Membranes
Modified Bitumen Membranes
Ballasted EPDM Membrane
Metal Deck (20 ga. And 22 ga. ONLY)
Dens Deck
Hardboard
Plywood
Lightweight Concrete
Gypsum Deck
Polyisocyanurate (ISO)
Expanded Polystyrene (EPS)
Flat Surfaces to .5:12 (the R1000 can be used on slopes .5:12 to 1:12 when using the optional braking system)
DO NOT USE THE RAPTOR R1000 ON THE FOLLOWING SUBSTRATES:
Ice
Snow
Tectum Deck
Metal Deck less than 22ga. or over 20ga.
(Structural Deck)
Loose laid material not part of a complete finished system
** BEFORE HOISTING TO ANY ROOF SURFACE**
THE CONTRACTOR MUST VERIFY THAT THE DECK ASSEMBLY CAN ACCOMMODATE
THE LIVE LOAD REQUIREMENTS OF
THE RAPTOR R1000.
WHERE ARE THE COUNTERWEIGHTS/WATER TANKS?
The TriRex has no counterweights to add or water tanks to fill. The solid steel frame members, along with the leverage of the safety engagement arm, eliminates the need for cumbersome counterweights or water tanks.
HOW DOES IT WORK?
If a fall were to occur, the TriRex’s Patent-Pending Roof Safety Engagement Device penetrates the roof, creating a secure anchor point to restrain or arrest the fall.
HOW MANY MEN CAN ATTACH TO THE TRIREX?
Three.* The TriRex is rated for three men for fall arrest.
*With the optional Fall Restraint Tie-Off Rings an additional two men can be attached to the TriRex.
WHAT’S THE DIFFERENCE BETWEEN FALL ARREST AND FALL RESTRAINT?
Fall arrest is the stopping of a fall in progress. Fall restraint is to stop before it occurs.
IS THE TRIREX OSHA APPROVED?
OSHA no longer offers an approved status to products. OSHA regulations and standards are established as the criteria to be met in the design of products. The TriRex is manufactured to comply with OSHA Regulation 1926.502(d) for fall arrest anchors.
WHERE DO I HOOK UP TO ON THE TRIREX?
Three rings that are welded to a green plate located in the center on one side of the TriRex. These three green rings are the tie off points. The four yellow lifting hooks located on each corner of the
TriRex are for hoisting purposes only.
ARE THERE ANY PARTS THAT NEED TO BE REPLACED OR RE-CERTIFIED IF THERE IS AN ACTIVATION OF THE SYSTEM?
No. If the activation is strong enough, the engagement claw may stick in the substrate. Dislodge the claw from the substrate and the engagement arm will return to its ready position. A competent individual should inspect the unit for any damage and to insure that the engagement arm moves in anuninhibited manner. The TriRex may be repositioned and used again.
CAN THE BASE MODEL TRIREX BE USED WITHOUT THE LARGE JOB BOX?
No. The large job box is an integral part of the TriRex and is bolted to the frame.
WHAT TYPE OF TIRES ARE INSTALLED ON THE TRIREX?
All TriRex’s now come standard with Solid Polyurethane Tires.
WHAT DOES THE TRIREX WEIGH?
The empty weight of the base model TriRex with solid tires is 965 pounds. Each AES TriRex has a sticker inside the lid of the rear job box which provides the empty weight of the models.
CAN I INSTALL MY OWN EQUIPMENT ON THE TRIREX?
Yes. AES Raptor offers an optional 12 cubic foot job box but the base model is sold without any
optional equipment, giving the owner the opportunity to install their own equipment.
CAN THE ENGAGEMENT SYSTEM BE INSTALLED ON THE ROOFING CARTS I ALREADY OWN?
No. The AES TriRex is specifically designed and tested to operate in combination with the Roof Safety Engagement Device. A fabricated roofing cart would not comply with OSHA regulations without proper testing and certification, thus subjecting the workers and owners to potential hazards and fines.
