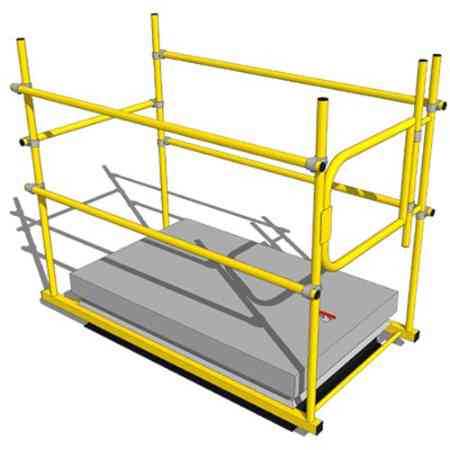

JL Industries, #SHG-2436 Roof Hatch Self Closing Gate 24 in. to 36 in.

No drilling required! Fits all standard roof hatches!

This is a "zero penetration" guard-rail system that meets OSHA requirements for rooftop openings. Safety Rail System will not damage the roof's base flashing or void your roof warranty by drilling into the curb or applying heavy iron bases on the completed roof system surface.

Designed to meet OSHA requirements for safe egress and ingress through rooftop hatch openings while hatch is in use. A fixed railing system that provides permanent fall protection around RoofTop openings, skylights, or fire vents. The innovative clamping base system, top rails, mid rails, and chain or swinging gate. All parts are factory pre-finished galvanized with safety yellow powder coat finish and a full system material warranty.

Safety Rail System is constructed of 1 5/8" OD A53 Grade B seamed galvanized steel pipe, with high visibility safety yellow powder-coat. Zinc plated 3/16" ASTM proof coil chain, hoops, rings, nuts, bolts, and washers, as required. Railing Clamps RoofTop Accessories model number RTA 02 preset welded clamp, or as required.

Roof Hatch Railing System is available for all brands and sizes of roof hatch, smoke vents, or skylights. Installs in minutes with basic tools we provide and does not require special training or certification for a proper installation. Installation is so simple a 5-year-old can do it (see picture above).

*Hatch not included, railing not included. Price is for the self closing gate only.

General Specifications: The work includes furnishing all materials and devices required in conjunction with the installation of the RoofTop Hatch Safety Guard-Rail.

References: The Occupational Safety and Health Administration (OSHA) Standards. OSHA regulation Title 29 CFR 1910.23 and 1910.27. National Roofing Contractor's Association (NRCA) manual, current edition. Sheet Metal and Air Conditioning Contractor's Association, Inc. (SMACNA) manual, current edition.

Materials: Pipe 15/8" OD A53 Grade B seamed galvanized steel. Zinc plated 3/16" ASTM proof coil chain, hoops, rings, nuts, bolts, and washers, as required. Railing Clamps RoofTop Accessories model numbers RTA 02, 03, 31, 32, 34 and 40G, or as required.

Installation:
Field customized to fit existing conditions or as specified herein.

Set curb framing gasket around roof opening, tighten to fit curb.

Add the four corner posts into receiver and bolt frame.

Install cross rails into preset clamps and level adjust as required.

Add chain or gate as specified by manufacturer. Installation is so simple a 5-year-old can do it (see picture above).

Warranty: RoofTop Accessories shall provide a full system material warranty necessary to cover all cost of repair and/or replacement of all components of the systems against defects in manufacturing for the period of seven (7) years. Warranty will not include Acts of God, vandalism, neglect, metal finish, or improper installation.
