SPECIFIC ANCHOR APPLICATIONS

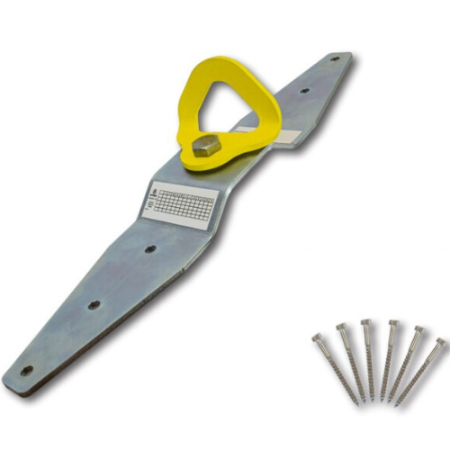

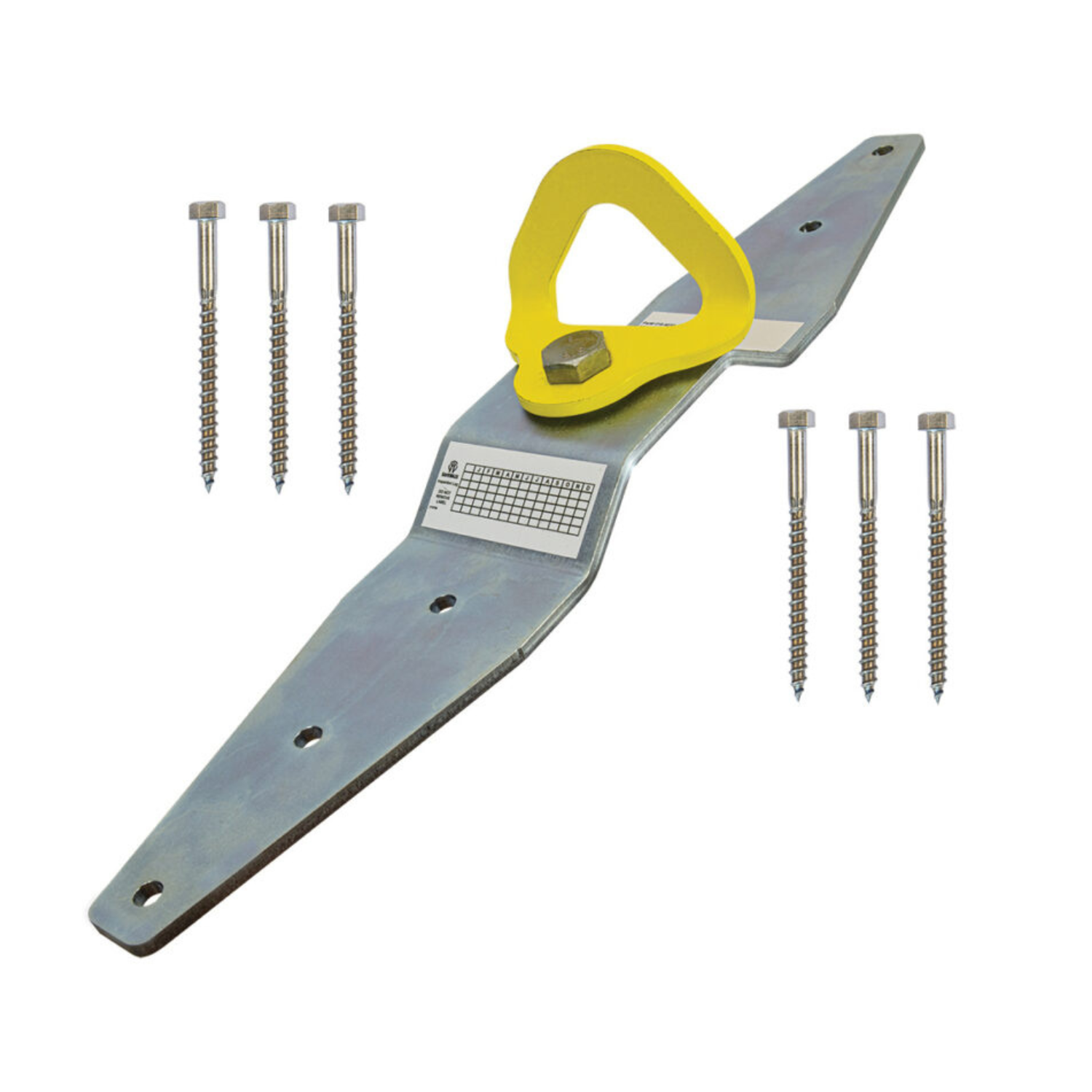

Personal Fall Arrest: The 019-4010 Roof Anchor is designed as an
anchor point to support a maximum of 1 Personal Fall Arrest System
(PFAS) when utilized for fall protection applications. The structure to
which the anchor is attached must withstand loads applied in the
directions permitted by the system of at least 5,000 lbs. The maximum
allowable free fall is 6’.
Restraint: The 019-4010 Roof Anchor is authorized for use in Restraint
applications. The structure to which the anchor is attached must withstand
loads applied in the directions permitted by the system of at least 1,000
lbs NO free fall is permitted. Restraint systems may only be used on
surfaces with slopes up to 4 / 12 (vertical/horizontal). For Restraint
applications, the allowable attachment points to harness are Dorsal
D-ring, Chest D-ring, Side D-rings, and Shoulder D-rings.
Work Positioning: The 019-4010 Roof Anchor is authorized for use in
Work Positioning applications. Work Positioning allows a worker to be
supported during suspension while freeing both hands to conduct work
operations. The structure to which the anchor is attached must withstand
loads applied in the directions permitted by the system of at least 3,000
lbs. The maximum allowable free fall is 2’. For positioning applications, the
allowable attachment points to harness are the Side D-rings.
Rescue/Confined Space: The 019-4010 Roof Anchor is authorized for
use in Rescue/Confined Space applications. Rescue systems are utilized
to safely recover a worker from a confined location or after exposure to
a fall. The composition of rescue systems can vary based upon the type
of rescue involved. The structure to which the anchor is attached must
withstand loads applied in the directions permitted by the system of at
least 3,000 lbs. NO free fall is permitted. For rescue applications, the
allowable attachment points to harness are Dorsal D-ring, Chest D-ring
and Shoulder D-rings.
