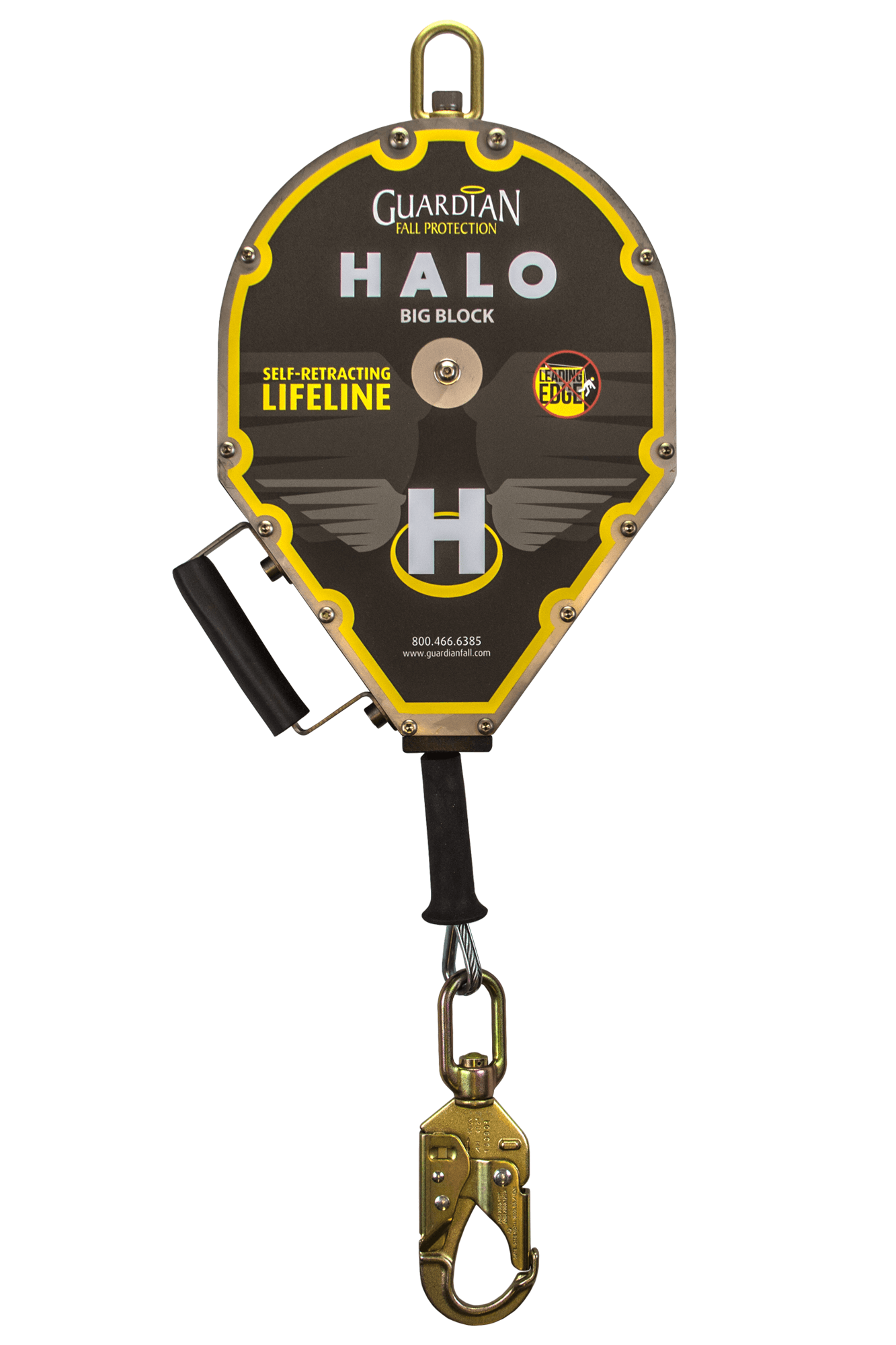

Guardian 10917 50 ft. Halo Big Block Cable SRL

The Guardian Fall Protection 10917 Halo Big Block Cable SRL is a heavy-duty 50 ft. self-retracting lifeline built for high durability and long-term performance. Featuring a 3/16 in. galvanized steel cable, rugged glass-filled nylon housing, and an ergonomic carry handle, this SRL is designed for tough jobsite conditions. The swivel top reduces cable twisting, while the internal braking system ensures smooth, controlled fall arrest. With its robust construction and long reach, the Guardian 10917 is ideal for elevated work in construction, maintenance, and industrial environments. Fully OSHA and ANSI compliant, the Halo Big Block provides dependable fall protection for workers at height.

Key Features:

• 50 ft. galvanized steel cable lifeline for extended work reach

• Heavy-duty glass-filled nylon housing with ergonomic carry handle

• Swivel top for reduced twisting and easy movement

• Steel snap hook for secure harness connection

• Internal energy-absorbing braking system for controlled deceleration

• OSHA and ANSI compliant

• Model: 10917
• Type: Halo Big Block Cable Self-Retracting Lifeline (SRL)
• Length: 50 ft.
• Lifeline Material: 3/16 in. galvanized steel cable
• Housing: Glass-filled nylon with integrated carry handle
• Connector: Swivel top with steel snap hook
• Capacity: 130–310 lb (worker + tools)
• Average Arresting Force: ≤ 900 lb
• Maximum Arrest Distance: 54 in.
• Weight: Approx. 20 lb
• Application: Long-reach fall arrest systems
• Compliance: ANSI Z359.14, OSHA 1910 & 1926
• Includes: (1) 50 ft. Halo Big Block Cable SRL with swivel top and snap hook

• Inspect the SRL housing, cable, and snap hook for wear or damage before each use.
• Attach the swivel top securely to a certified anchorage connector.
• Extend the galvanized cable and connect the snap hook to the dorsal D-ring of a full body harness.
• Verify that the snap hook is fully closed and locked.
• Keep the cable free from knots, tangles, or sharp edges while in use.
• After work, allow the cable to retract slowly into the housing.

Q: What is the length of the Guardian 10917 Halo Big Block SRL?
A: The SRL provides 50 ft. of galvanized steel cable.

Q: What size cable does it use?
A: It uses a 3/16 in. galvanized steel cable.

Q: Does it include a swivel top?
A: Yes, the swivel top reduces twisting and provides easier anchorage connection.

Q: What is the worker weight capacity?
A: It supports 130–310 lb including worker and tools.

Q: Is the Guardian 10917 OSHA and ANSI compliant?
A: Yes, it meets OSHA 1910/1926 and ANSI Z359.14 standards.
